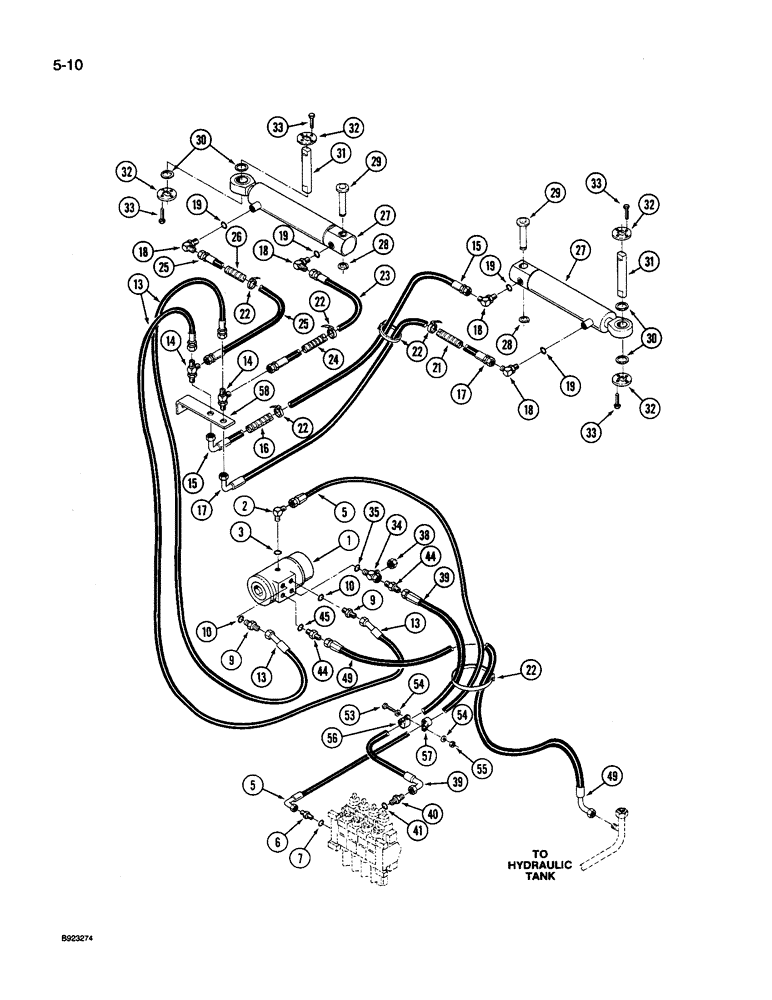

Запчасти Case IH 9240 (5-010) - STEERING SYSTEM HYDRAULICS, FRONT STEERING, PRIOR TO P.I.N. JCB0028400 (05) - STEERING

1

50-2600T91

UNIT

VALVE ASSEMBLY - control, steering, See Figure 5-024

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread, Includes: Ref. 3

1шт.

3

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

31-2612

HOSE ASSY.

HOSE - steering control valve to control valve, 70 inch

1шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 9/16 x 7/16 inch thread, Incl. Ref. 7

1шт.

7

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 10

2шт.

10

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

2шт.

13

31-2521

HOSE

- steering control valve to hose, 45 inch

2шт.

14

31-2894

TEE

- 3/4 inch thread (Alt. location; above or below Ref. 58)

2шт.

15

31-2928

HOSE ASSY.

HOSE - hose to steering cylinder, 43 inch

1шт.

16

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

17

31-2927

HOSE

- hose to steering cylinder, 52 inch

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 19

4шт.

19

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

4шт.

21

50-2905T1

CONDUIT

GUARD - hose protector, 45 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

22

19-135

CABLE TIE

STRAP - nylon

12шт.

23

31-2066

HOSE ASSY.

HOSE - hose to steering cylinder, 22 inch

1шт.

24

50-2697T1

CONDUIT

GUARD - hose protector, 15 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

25

32-150

HOSE

- hose to steering cylinder, 26-1/2 inch

1шт.

26

50-2696T1

HOSE

GUARD - hose protector, 20 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

27

50-3272T94

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, See Figure 5-030

2шт.

28

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

29

50-3314T2

PIN

- retainer, steering cylinder

2шт.

30

2-3223T1

SPACER

- cylinder mounting

4шт.

31

90-7478T1

PIN

- retainer, steering cylinder

2шт.

32

90-7479T1

RING, SNAP

RING - retaining, cylinder pin

4шт.

33

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex, 10 x 20 mm, class 10.9

16шт.

34

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread, Includes: Ref. 35

1шт.

35

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

38

218-755

CAP,37 Degree, 3/4"-16

1шт.

39

31-2926

HOSE ASSY.

HOSE - steering valve to control valve, 60 inch

1шт.

40

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 x 1-1/16-12 inch thread, Includes: Ref. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

44

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4 x 1-1/16 inch thread, Includes: Ref. 45

2шт.

45

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

49

31-2478

HOSE

- steering valve to drain tube, 50 inch

1шт.

53

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

54

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

55

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

56

31-1348

CLAMP

- hose

1шт.

57

31-1776

MOUNTING CLIP

CLAMP - hose retaining (Replaces 31-2488)

1шт.

58

50-3324T1

SUPPORT

BRACKET - mounting, tee

1шт.

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread, if used

1шт.

218-755

CAP,37 Degree, 3/4"-16

If used 37º, 3/4"-16

1шт.
