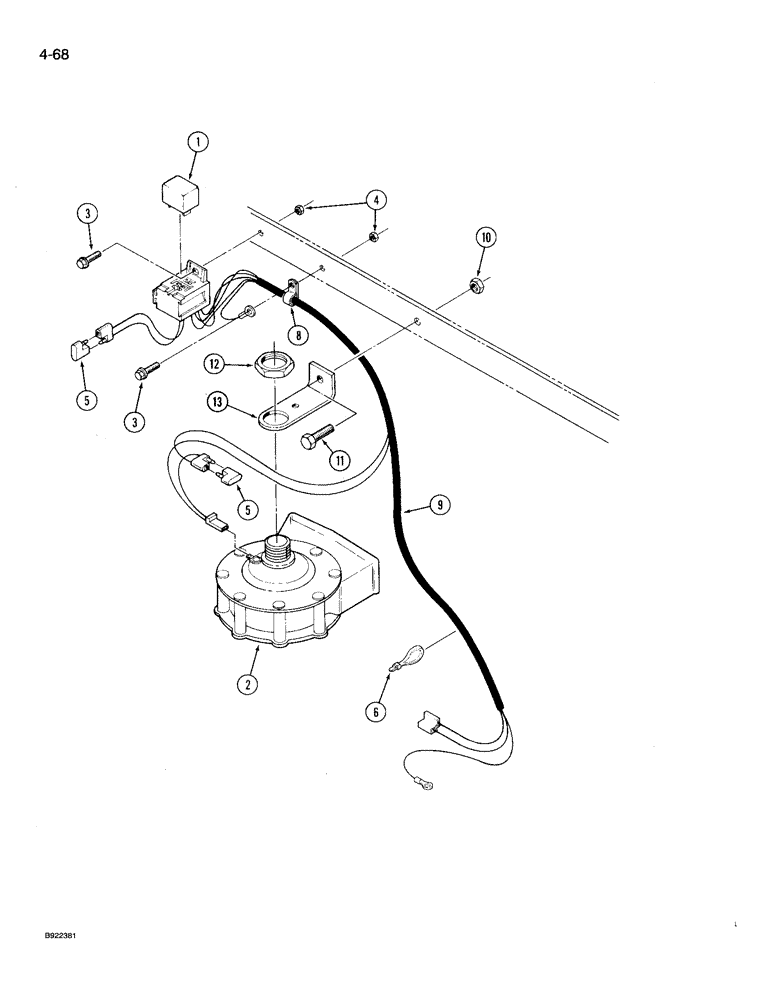

Запчасти Case IH 9230 (4-068) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

1983394C1

RELAY

- electrical, sealed (Replaces 20-2133T1)

1шт.

2

R45962

HORN

- warning

1шт.

3

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- hex flange machine, No. 10-24 x 3/4 inch

2шт.

4

19-5571

SERRATED NUT

- hex, Keps lock, No. 10 NC

2шт.

5

22-738

DIODE

- electrical

2шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

32-69

CLAMP

- retaining

1шт.

9

60-6290T1

HARNESS

- horn

1шт.

10

27254R1

NUT

- hex lock, 5/16 inch NC

1шт.

11

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

12

L30866

LOCK NUT

- hex, 7/8 NC

1шт.

13

L73799

BRACKET

- mounting, horn

1шт.
