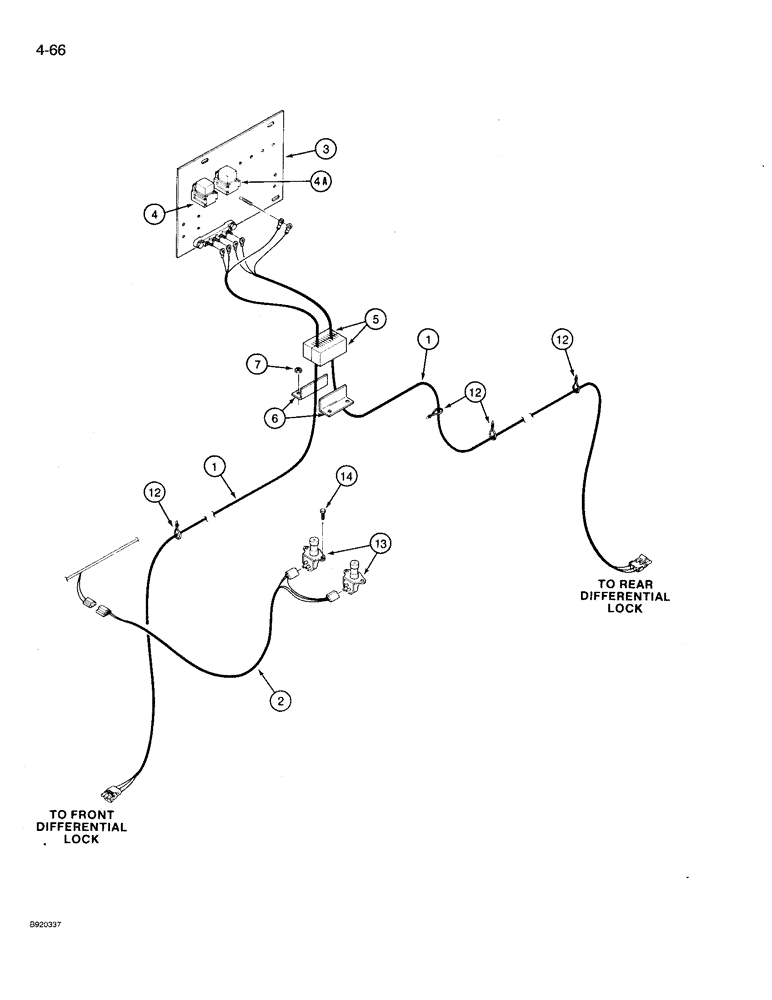

Запчасти Case IH 9230 (4-066) - DIFFERENTIAL LOCK HARNESSES (04) - ELECTRICAL SYSTEMS

1

20-2303T1

HARNESS

- differential lock

2шт.

2

60-6341T1

HARNESS

- switch, differential lock

1шт.

3

60-5052T2

LARGE PLATE

PLATE - mounting, relay, See Figure 4-014, Ref. 1

1шт.

4

60-6340T1

HARNESS

- relay, front differential lock, See Figure 4-014, Ref. 30

1шт.

4a

60-6339T1

HARNESS

- relay, rear differential lock, See Figure 4-014, Ref. 29)

1шт.

5

60-6066T1

FOAM

- sealing

2шт.

6

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

13

20-1988T1

IGNITION SWITCH

SWITCH - on/off, differential

2шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.
