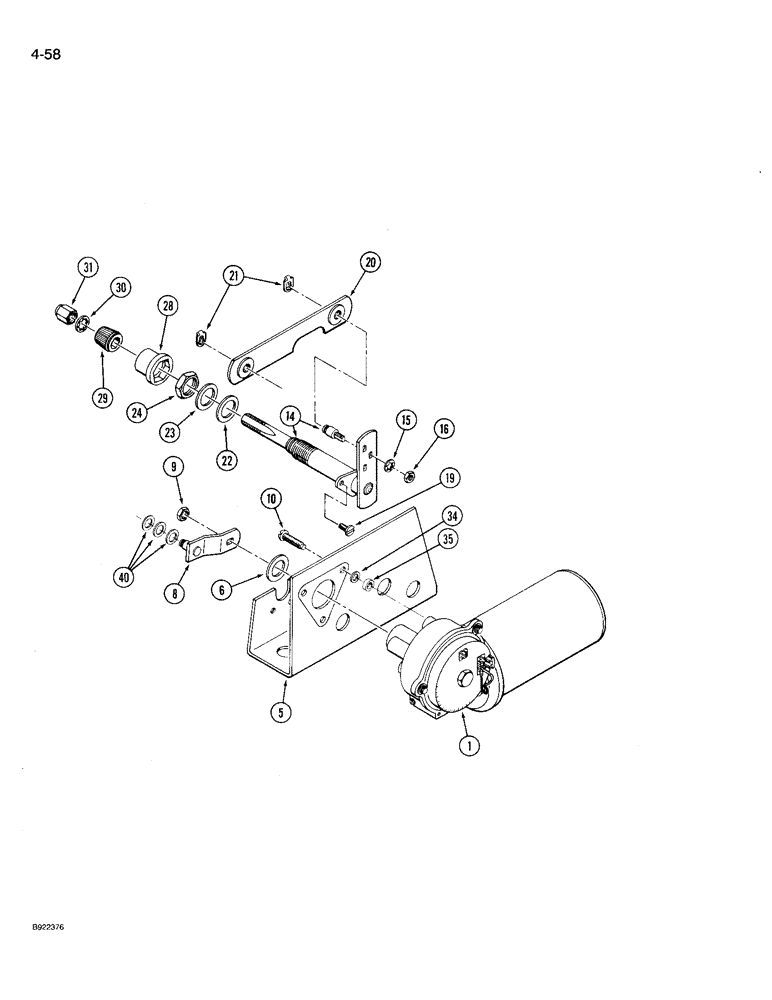

Запчасти Case IH 9230 (4-058) - WIPER DRIVE ASSEMBLY, FRONT WINDOWS, PRIOR TO P.I.N. JCB0027741 (04) - ELECTRICAL SYSTEMS

60-5908T91

WIPER MOTOR

DRIVE ASSEMBLY - wiper (Order components), Includes: Ref. 1 - 40

1шт.

1

2-6866T1

MOTOR, ELECTRIC

MOTOR - wiper

1шт.

Ref: #1 replaced by 129068A2 Wiper Motor Kit 60-7091 Wire and 60-7187T1 Drive arm is needed when tractor has frt. position motor. Per F96307.

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

D71411

WASHER

- wave

1шт.

8

60-5914T1

LEVER

- drive

1шт.

9

F44452

LOCK NUT

- hex, Keps

1шт.

10

D72849

SCREW

- machine, round head, Keps

3шт.

14

2-6869T91

SHAFT ASSY.

DRIVE - shaft and pivot arm, Includes: Ref. 15 & 16

1шт.

15

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal lock, 1/4 inch

1шт.

16

129-121

NUT,1/4"-28, G5

- hex jam, 1/4 inch NF

1шт.

19

2-6870T1

SCREW

- machine, pan head, Keps

1шт.

20

D71427

LINK,85.85mm L

- connecting

1шт.

21

D71414

CLIP

RETAINER - spring clip

2шт.

22

N6749

WASHER

- fiber

1шт.

23

N6750

WASHER

- flat steel

1шт.

24

60-3497T1

NUT

- hex jam

1шт.

28

N6752

CAP

- shaft, rubber

1шт.

29

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

30

60-3501T1

WASHER

- internal lock

1шт.

31

N6754

NUT

- dome, 3/8 inch NF

1шт.

34

60-5913T1

SPACER

motor

3шт.

35

19-6265T1

SPACER

- motor

3шт.

40

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch (Quantity 1 if equipped with side wiper)

3шт.
