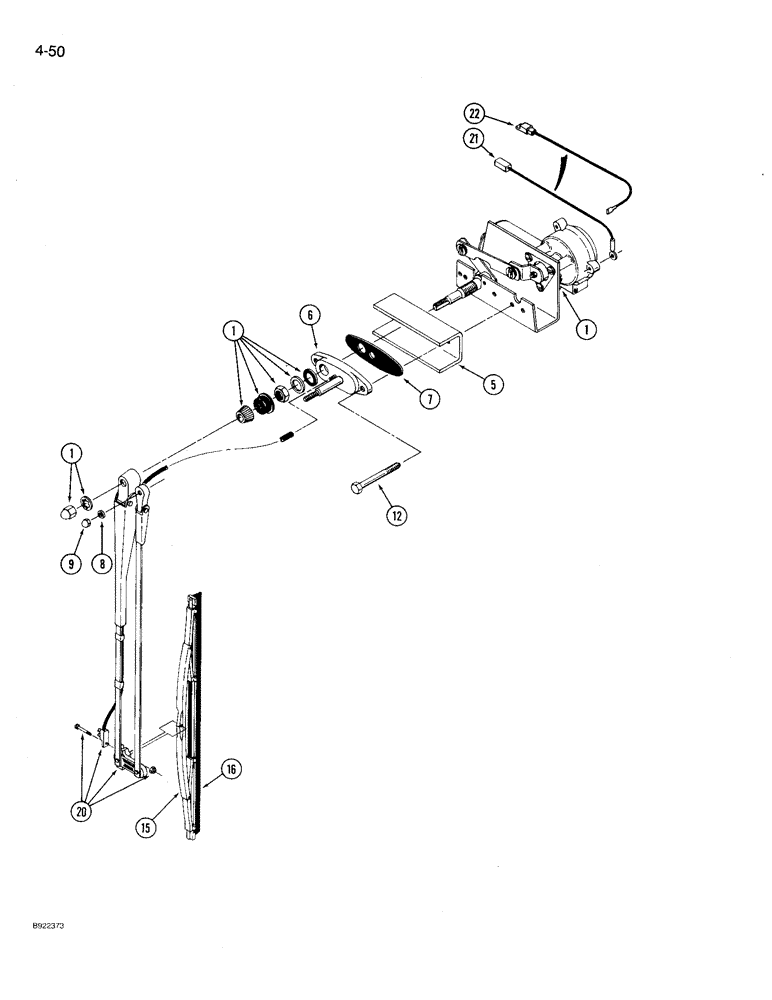

Запчасти Case IH 9230 (4-050) - FRONT WINDOW WIPER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, front window, See Figures 4-058 and 4-060 for correct wiper drive

1шт.

5

2-2822T1

SPACER

- mounting, wiper

1шт.

60-1436T91

PIVOT ASSY.

KIT - pivot, wiper blade, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper blade

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - pivot

1шт.

8

2-4191T1

WASHER

- flat

1шт.

9

2-4192T1

NUT

- hex cap

1шт.

12

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME - wiper blade

1шт.

16

2-4194T1

WIPER BLADE

BLADE - wiper, rubber, 18 inch

1шт.

20

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

21

20-1452T1

ELECTRICAL WIRE

WIRE - motor ground (Prior to P.I.N. JCB0027741)

1шт.

22

60-6627T1

ELECTRICAL WIRE

WIRE - motor ground (P.I.N. JCB0027741 and after)

1шт.
