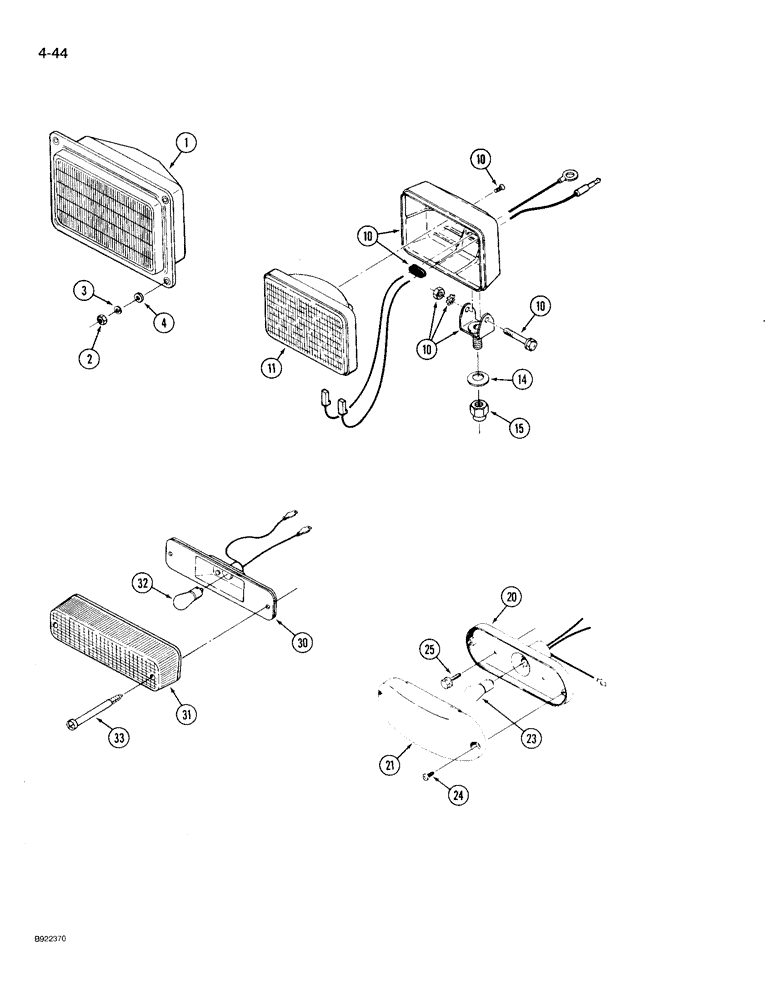

Запчасти Case IH 9230 (4-044) - LAMPS, HEAD LAMP, PRIOR TO P.I.N. JCB0028400 (04) - ELECTRICAL SYSTEMS

1

20-2063T1

HEADLIGHT

HEADLAMP - tractor, Serial Range: -JCB0028400

2шт.

2

225-14110

NUT,#10-24

8шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

8шт.

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, Includes: Ref. 10, 11

6шт.

10

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - flood lamp

1шт.

11

20-1822T1

LAMP BASE

LENS - sealed beam, flood lamp assembly

1шт.

14

22-367

SPRING WASHER

- conical spring lock, 1/2 inch, flood lamp assembly

4шт.

15

19-653

LOCK NUT

- hex lock, 1/2 inch NC, flood lamp assembly

4шт.

20-2256T91

LAMP

ASSEMBLY - tail, Includes: Ref. 20 - 24, prior to P.I.N. JCB0028400, Serial Range: -JCB0028400

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - tail lamp, prior to P.I.N. JCB0028400

1шт.

21

20-2257T1

LAMP

LENS - tail lamp (Order 20-2256T91), assembly, prior to P.I.N. JCB0028400

1шт.

23

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, tail assembly, prior to P.I.N. JCB0028400

1шт.

24

19-5804

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - pan head slotted tap, No. 6 NS x 1/2 inch, tail lamp assembly, prior to P.I.N. JCB0028400

2шт.

25

60-6688T1

SCREW

- hex washer head tap, No. 10-16 x 3/4 inch, tail lamp assembly, prior to P.I.N. JCB0028400

2шт.

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, Includes: Ref. 30 - 32

4шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - warning lamp asembly

1шт.

31

60-6246T1

LENS

- warning lamp assembly

1шт.

32

A41264

BULB,#1156, 12V

Lamp, Warning, assembly #1156, 12V

1шт.

33

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

- shoulder pan head, No. 8 NC x 1-3/4 inch, warning lamp assembly

8шт.

35-1751T91

LAMP

KIT - flood lamp (Includes 20-1730T91, quantity 4 and additional parts needed to mount lights on tractor), warning assembly

1шт.
