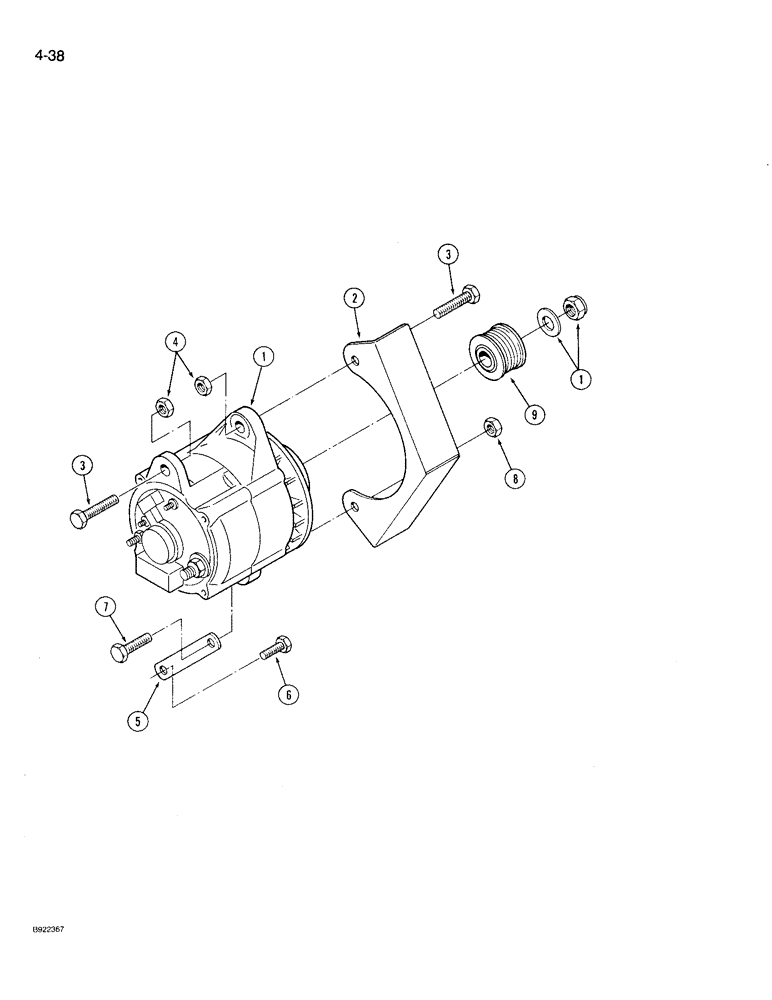

Запчасти Case IH 9230 (4-038) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figures 4-040 and 4-042 for correct alternator

1шт.

2

70-5828T1

GUARD

SHIELD - alternator

1шт.

3

857-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 60 mm, class 10.9

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

J911485

SUPPORT

BRACE - alternator

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

9

A189616

PULLEY

- alternator

1шт.
