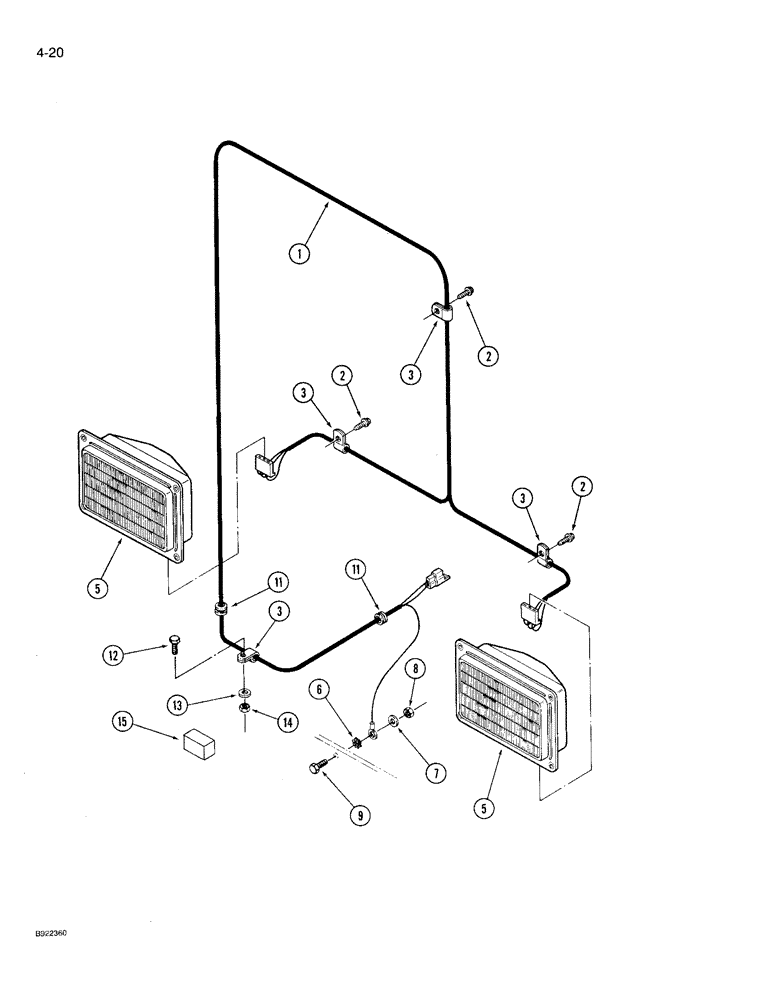

Запчасти Case IH 9230 (4-020) - FRONT HEADLAMP HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2022T1

HARNESS

- front headlamp (Prior to P.I.N. JCB0028400)

1шт.

1

60-6783T2

HARNESS

- front headlamp (P.I.N. JCB0028400 and after)

1шт.

2

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex flange, 1/4 NC x 3/4 inch

3шт.

3

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

4шт.

5

REF

INSTRUCTION

LAMP - head, See Figures 4-044 and 4-046 for correct lamp

2шт.

6

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

31-2242

GROMMET

- protective

2шт.

12

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

15

NSS

NOT SOLD SEPARAT

FOAM - protective, 2-1/2 inch (Order 70-6214 and, Serial Range: cut-length)

1шт.

70-6214T1

SEAL

FOAM - bulk seal, 72 inch long

1шт.
