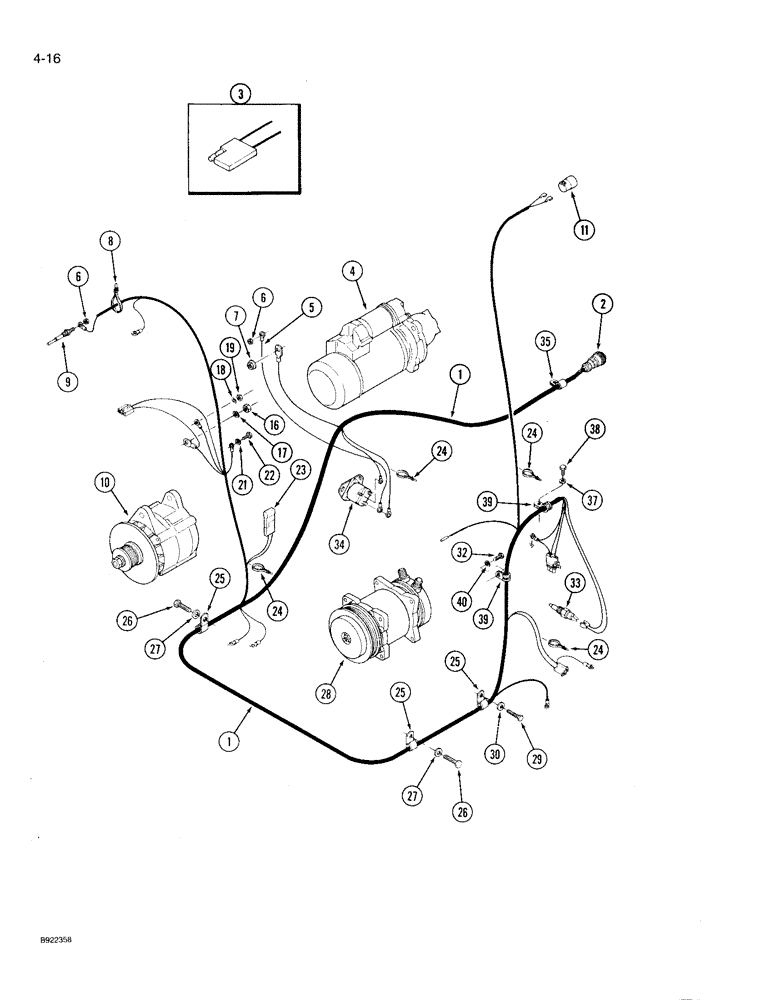

Запчасти Case IH 9230 (4-016) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6453T4

HARNESS

HARNESS ASSEMBLY - engine, Includes: Ref. 2 & 3

1шт.

Order Harness 60-6940T1 and Temp Switch 60-6935T1 on JEE0031876 and Before

1шт.

Order Harness 60-6974T1 on JEE0031877 and After.

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

60-6639T1

DIODE ELEMENT

DIODE - alternator connector

1шт.

4

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, See Figures 4-034 and 4-036

1шт.

4

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

4

AC187728

CORE-STARTER

Return Part Number

1шт.

4

A187728GV

STARTER MOTOR

Value

1шт.

5

20-2242T1

ELECTRICAL WIRE

WIRE WIRE ASSEMBLY -, Serial Range: solenoid-switch

1шт.

6

19-481

SERRATED NUT

NUT - hex, Keps, No. 10 NF

2шт.

7

131-919

FLANGE NUT,Flg, 1/2"-13, G5

NUT - hex flange, 1/2 inch NC

1шт.

8

19-135

CABLE TIE

CABLE STRAP STRAP - nylon

3шт.

9

A145513

SENSOR

SENSOR - level, coolant

1шт.

10

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figures 4-040 and 4-042 for correct alternator

1шт.

11

A172784

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

16

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

This item may not be required. Some alternators include all necessary hardware to connect to the engine harness.

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

This item may not be required. Some alternators include all necessary hardware to connect to the engine harness.

1шт.

18

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

This item may not be required. Some alternators include all necessary hardware to connect to the engine harness.

1шт.

19

225-14110

NUT,#10-24

NUT, #10-24

1шт.

This item may not be required. Some alternators include all necessary hardware to connect to the engine harness.

1шт.

21

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

This item may not be required. Some alternators include all necessary hardware to connect to the engine harness.

1шт.

22

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

BOLT - hex, 1/4 NC x 1/2 inch, grade 8

1шт.

23

60-6251T1

DIODE

DIODE - electrical

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

25

22-628

CABLE CLIP

CLIP - retaining, harness

3шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 12 - 1.75 x 25 mm

2шт.

27

495-21050

WASHER,7/16"

WASHER - flat, 7/16 x 1-1/4 x 1/16 inch

2шт.

28

60-2921T94

AIRCOND. COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioner, See Figure 9-116

1шт.

28

60-2921T94R

REMAN-A/C COMPRESSOR

9210, 9230, Both (9/90-5/95)

1шт.

28

60-2921T94C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

29

40-1096

CAPSCREW,Hex, M10 x 1.5 x 16mm, Gr 8.8

BOLT - hex, 10 - 1.5 x 16 mm, no longer required, clamp at this location is retained by 614-10035 bolt, Ref. 25 on Figure 2-004

1шт.

30

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch), No longer required 3/8"

1шт.

32

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M6 x 20, 8.8

1шт.

33

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender

1шт.

34

A39079

SOLENOID

SWITCH - magnetic, See Figure 4-022

1шт.

35

155850H1

CLAMP,3/8", 1/4" Bolt

CLAMP - retaining

1шт.

37

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 18 mm

1шт.

39

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

40

495-31025

WASHER,3/16"

WASHER - flat, 1/4 x 9/16 x 3/64 inch

1шт.
