(4-010) - OVERHEAD ROPS HARNESS

Запчасти Case IH 9230 (4-010) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS

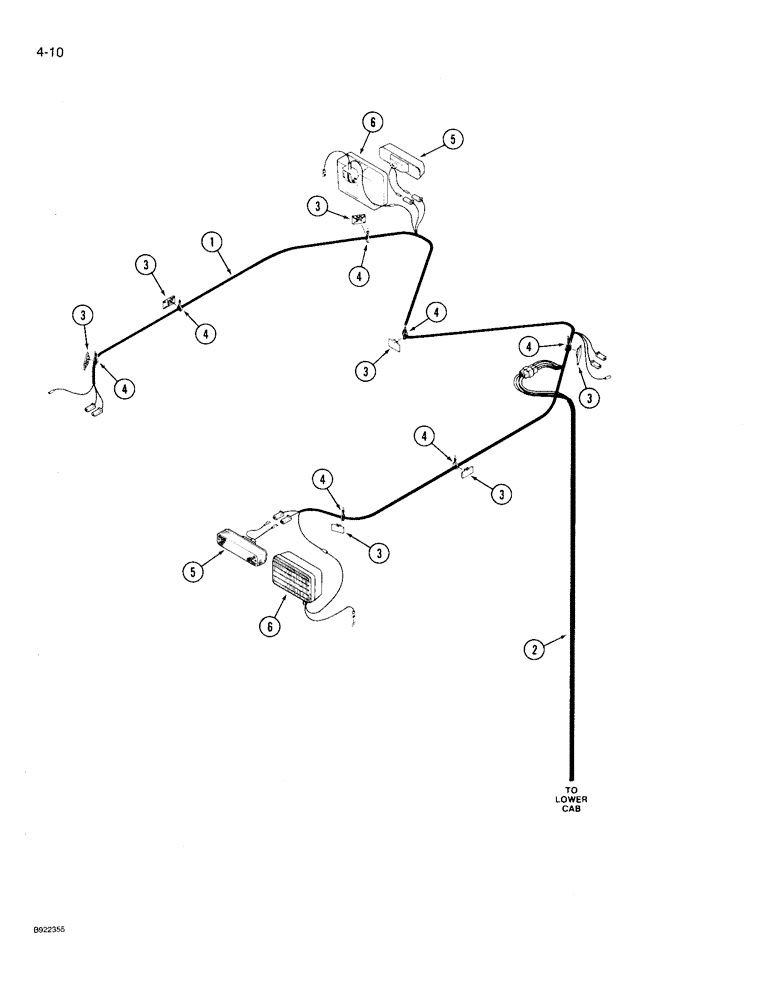

Схема запчастей Case IH 9230 - (4-010) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS
3
6
4
4
3
5
4
4
4
3
5
1
2
3
6
3
4
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead, Includes: connector

1шт.

2

60-6452T2

HARNESS

- ROPS main, See Figure 4-006, Includes: connector

1шт.

60-6638T1

PLUG

CONNECTOR - male plug, harness

1шт.

Ref #2a - (14 Pin Connector)

1шт.

3

22-823

MOUNT

MOUNT - adhesive back

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, See Figure 4-044

4шт.

6

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, See Figure 4-044

4шт.
