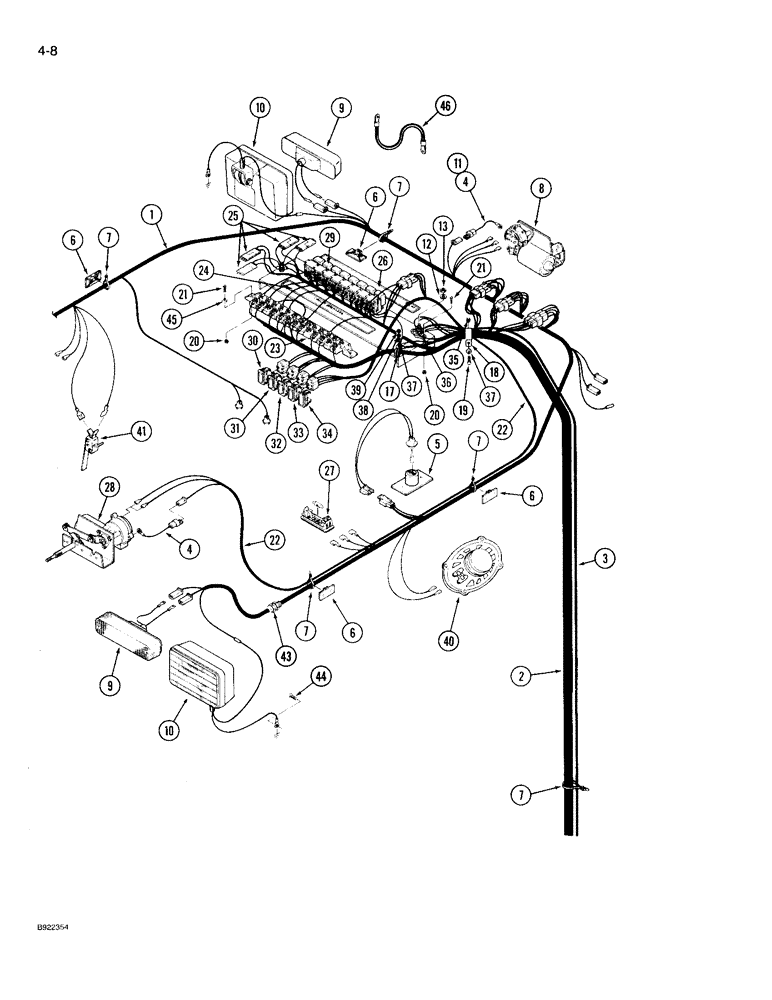

Запчасти Case IH 9230 (4-008) - OVERHEAD CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6516T1

HARNESS

- overhead

1шт.

2

60-6451T3

HARNESS

- main cab, See Figure 4-002

1шт.

3

60-6300T1

HARNESS

- overhead power

1шт.

4

REF

INSTRUCTION

WIRE - ground, wiper motor, See Figure 4-050 for correct wire

1шт.

5

83882C91

LAMP

ASSEMBLY - console, See Figure 9-082

1шт.

6

22-823

MOUNT

STRAP - mounting, adhesive backed

6шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

REF

INSTRUCTION

DRIVE ASSEMBLY - front wiper, See Figures 4-058 and 4-060 for correct wiper drive

1шт.

9

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, See Figure 4-044

4шт.

10

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, See Figure 4-044

4шт.

11

REF

INSTRUCTION

WIRE - ground, wiper motor, See Figure 4-056 for correct wire

1шт.

12

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

13

115772

NUT

- hex brass, 3/8 inch NC

1шт.

17

31-1776

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

18

31-1349

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

19

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

20

19-481

SERRATED NUT

- hex, Keps, No. 10 NF

4шт.

21

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10 NF x 1/2 inch

4шт.

22

60-6523T1

HARNESS

- rear wiper

1шт.

23

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit, See Figure 4-012 for correct assembly

1шт.

24

60-6297T1

DECAL

- circuit breaker

1шт.

25

22-738

DIODE

- electrical

4шт.

26

60-6298T1

DECAL

- overhead relay

1шт.

27

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, See Figure 9-086

1шт.

28

REF

INSTRUCTION

DRIVE ASSEMBLY - rear wiper, See Figure 4-064 for correct wiper drive

1шт.

29

1983394C1

RELAY

- electrical

7шт.

30

1964752C1

SWITCH

- rocker, master lamp

1шт.

31

245012C1

SWITCH

- rocker, dash lamp

1шт.

32

1964751C1

SWITCH

- rocker, ether start

1шт.

33

1987431C1

SWITCH

- rocker, rear wiper

1шт.

34

60-3210T1

PLUG

- switch hole

1шт.

35

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

36

20-1451T1

BLOCK

- junction

1шт.

37

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

40

60-5748T1

SPEAKER

- radio, See Figure 4-048

2шт.

41

60-6515T1

SWITCH

- dome lamp, See Figure 9-086

1шт.

43

60-6590T1

CONNECTOR, ELEC

CONNECTOR - electical, harness

1шт.

44

281-1046

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

SCREW - hex tap, No. 8 NC x 1 inch

2шт.

45

495-31022

WASHER,#10

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

46

60-6804T2

CABLE

STRAP - ground, cab

1шт.
