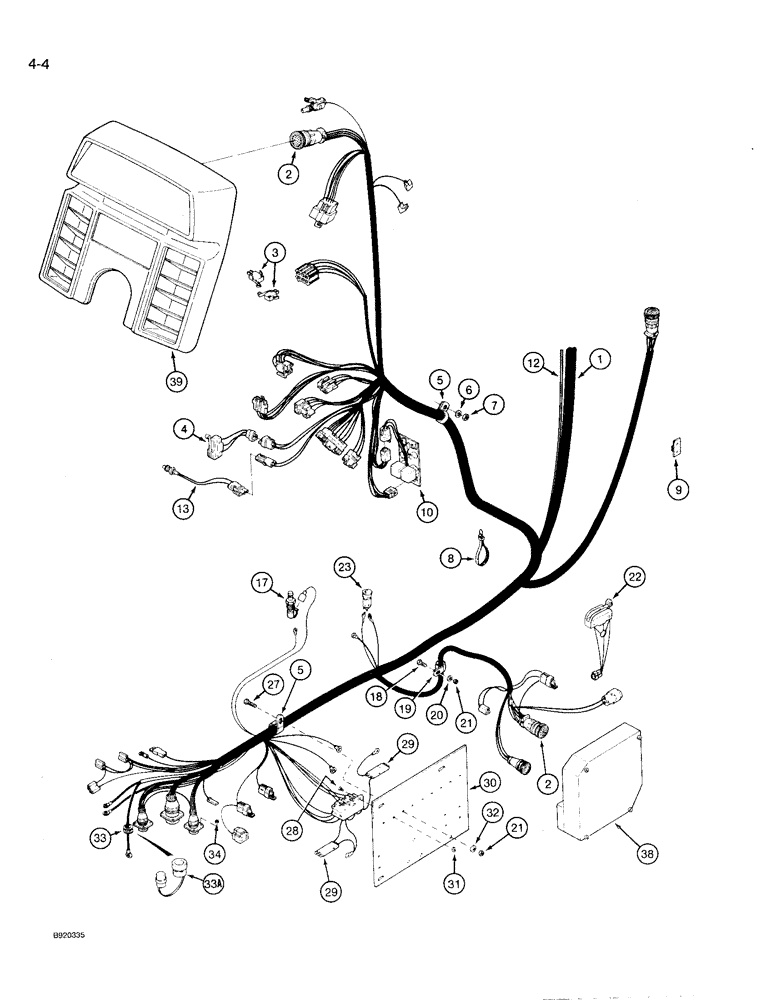

Запчасти Case IH 9230 (4-004) - LOWER CAB HARNESS, P.I.N. JCB0028400 AND AFTER (04) - ELECTRICAL SYSTEMS

1

60-6806T1

HARNESS

ASSEMBLY - cab main, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch, See Figure 9-102

2шт.

4

20-2340T91

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch (Order 20-2333T1 switch and 60-2666T1 wire), See Figure 6-040

1шт.

5

31-1349

MOUNTING CLIP

CLAMP - retaining, harness

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

9

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

10

20-1954T93

FLASHER UNIT

FLASHER ASSEMBLY - time base, not available as an assembly, order components, See Figure 4-072

1шт.

10

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T93

1шт.

10

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

12

60-6807T1

HARNESS

- overhead power

1шт.

13

60-6027T1

SENSOR

- proximity, See Figure 6-040

1шт.

17

245175C1

SWITCH

- parking brake, See Figure 7-008

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

19

T50104

CLAMP

- retaining

1шт.

20

495-11028

WASHER,1/4", SAE

1шт.

21

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

22

60-6059T91

IGNITION SWITCH

SWITCH - neutral, shift control, See Figure 6-036

1шт.

23

245576C1

LIGHTER, CIGARETTE

LAMPER - cigar, 12 volt

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10 NF x 1/2 inch

2шт.

29

22-738

DIODE

- electrical

2шт.

30

60-5052T2

LARGE PLATE

PLATE - mounting, relay, See Figure 4-014

1шт.

31

19-481

SERRATED NUT

- hex, Keps, No. 10 NF

2шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

33

D37936

GROMMET

- floor plate, if used

1шт.

33a

60-6853T1

BUSHING

- strain relief, floor plate, if used

1шт.

34

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

38

60-7160T1

CASE

CONTROLLER - transmission, See Figure 6-034 (Replaces 60-6798T1)

1шт.

39

60-6135T92

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument, See Figures 4-026 for components and 9-074 for cover

1шт.
