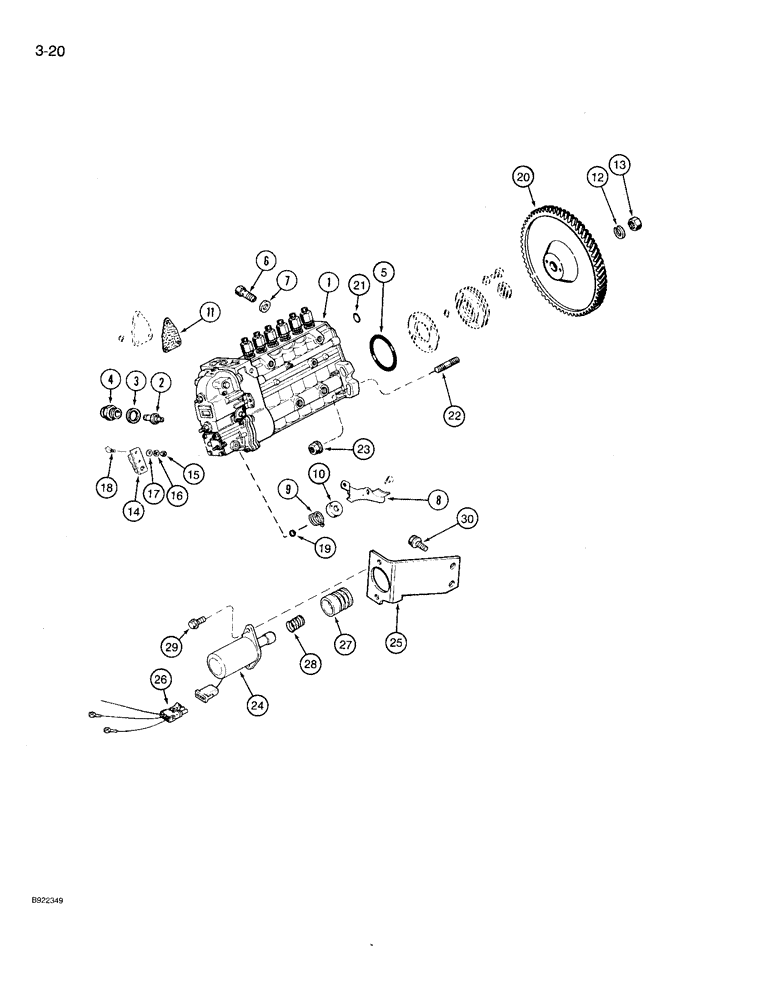

Запчасти Case IH 9230 (3-020) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (03) - FUEL SYSTEM

1

J915976

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

JR915976

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

JC915976

CORE-INJECTION PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- bolt, overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff, replaces J914094 lever

1шт.

Part of fuel shutoff kit P/N A77643.

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

Part of fuel shutoff kit P/N A77643.

1шт.

11

A46322

GASKET

- pump mounting

1шт.

12

A77775

LOCK WASHER

- lock, replaces J912895 washer

1шт.

13

A41852

LOCK NUT

- hex, lock

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1, class 10.9, Throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing

1шт.

20

J912614

GEAR

- pump, fuel

1шт.

21

J916284

O-RING

- sealing

1шт.

22

J915036

STUD

- mounting, pump, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J918600

SOLENOID

- fuel shutoff, 12 volt

1шт.

Part of fuel shutoff kit P/N A77643.

1шт.

25

J916142

SUPPORT

BRACKET - mounting, solenoid

1шт.

Part of fuel shutoff kit P/N A77643.

1шт.

26

60-6037T2

HARNESS

- solenoid

1шт.

Part of fuel shutoff kit P/N A77643.

1шт.

27

A77681

BOOT

- protective, plunger

1шт.

28

A77702

SPRING

- return, plunger

1шт.

29

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

30

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

A77643

SOLENOID

KIT - shutoff, fuel, Includes: Ref. 8, 10 and 24 - 26

1шт.
