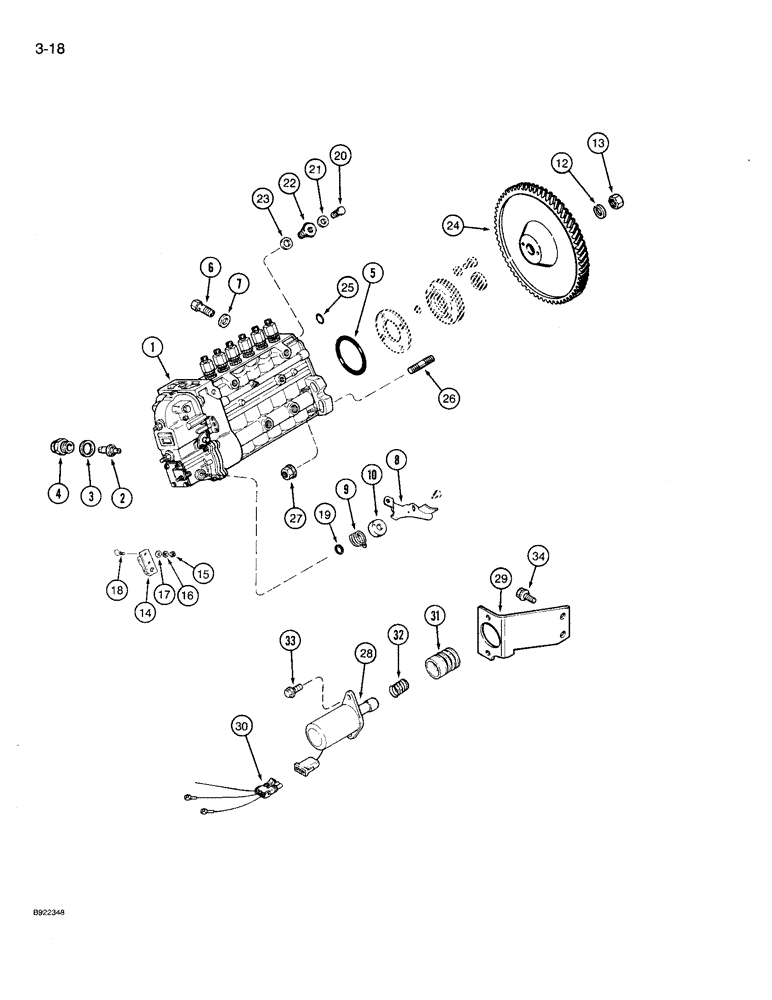

Запчасти Case IH 9230 (3-018) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, 9230 TRACTOR ONLY (03) - FUEL SYSTEM

1

J915686

PUMP

ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 23

1шт.

1

JR915686

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 23

1шт.

1

JC915686

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

ref #1 (P/N J915686) -rated speed 2200 RPM & 230 HP

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- seal

1шт.

6

J913681

BANJO BOLT

VALVE - bolt, overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff, replaces J914094 lever

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

12

J912897

LOCK WASHER

- lock

1шт.

13

J912896

LOCK NUT

- hex, lock

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1, class 10.9, Throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- special sealing

1шт.

20

B41211

SCREW

- vent

1шт.

21

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

- vent screw

1шт.

22

J913320

SCREW

- vent, open end

1шт.

23

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, sealing, vent screw

1шт.

24

J912615

GEAR

- fuel pump

1шт.

25

J910502

O-RING

- sealing, fuel pump to gear housing

1шт.

26

J915036

STUD

- mounting, pump, 55 mm (2-5/32 in)

4шт.

27

J902662

FLANGE NUT

- hex flange, fuel pump to timing gear housing

4шт.

28

J918600

SOLENOID

- fuel shutoff, 12 volt

1шт.

29

J916144

BRACKET

- mounting, solenoid

1шт.

30

60-6037T2

HARNESS

- solenoid

1шт.

31

A77681

BOOT

- protective, plunger

1шт.

32

A77702

SPRING

- return, plunger

1шт.

33

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

34

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
