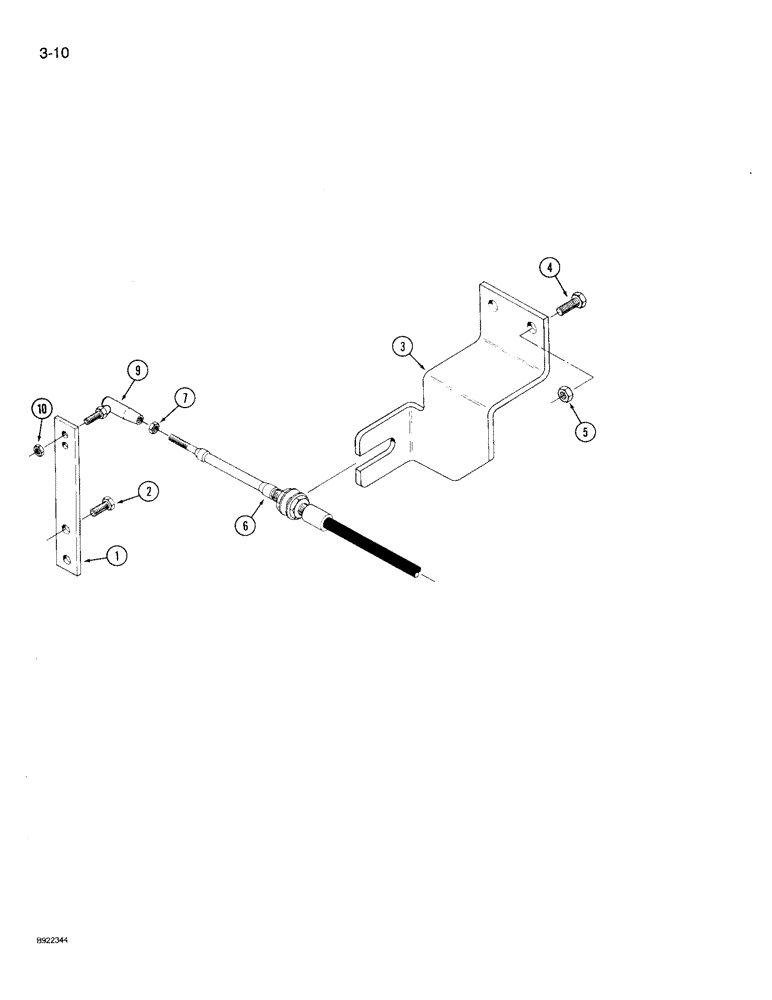

Запчасти Case IH 9230 (3-010) - THROTTLE CONTROLS, ENGINE ATTACHING PARTS (03) - FUEL SYSTEM

1

90-6507T1

LEVER

- throttle, engine attaching

1шт.

2

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 mm x 10 mm

2шт.

3

90-6875T1

BRACKET

- mounting, throttle cable

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

60-6425T1

CABLE,3048mm L

ASSEMBLY - throttle, Includes: Ref. 7

1шт.

Ref #6 - (120")

1шт.

7

225-14210

NUT,#10-32

1шт.

9

A75447

BALL JOINT

JOINT - ball, throttle

1шт.

10

225-14210

NUT,#10-32

1шт.
