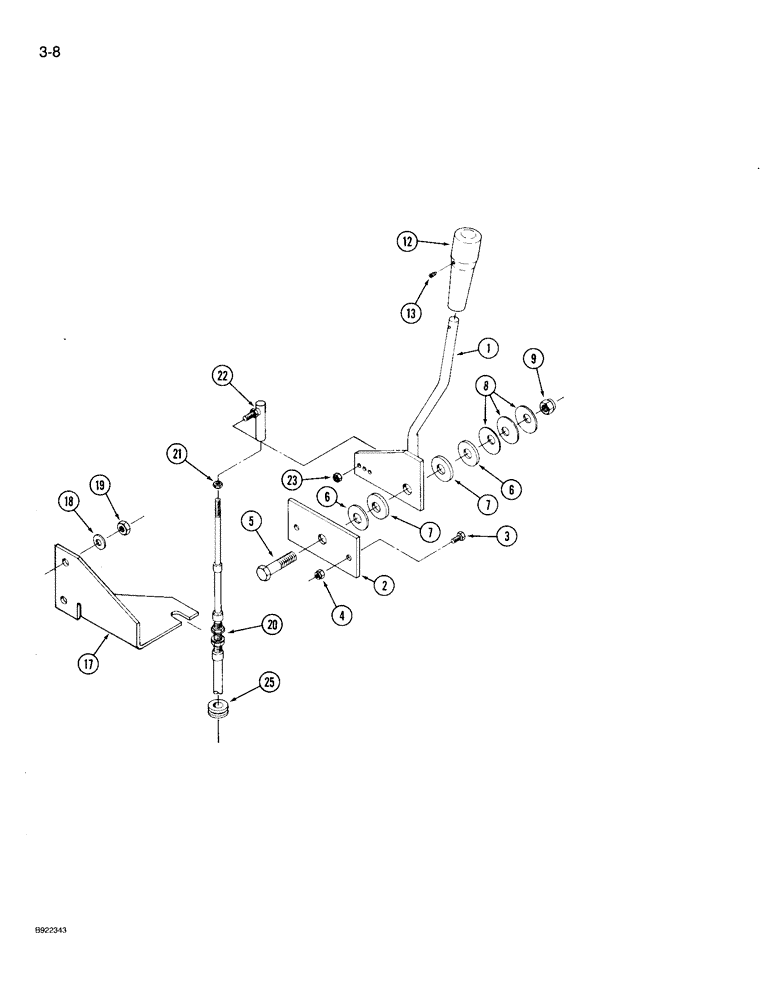

Запчасти Case IH 9230 (3-008) - THROTTLE CONTROL, ROPS MODELS (03) - FUEL SYSTEM

1

60-5850T1

LEVER ASSY.

LEVER - throttle control

1шт.

2

60-5851T1

LARGE PLATE

PLATE - mounting, throttle control

1шт.

3

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

2шт.

4

111626C1

NUT

- lock, 1/4 inch NC

2шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

7

54-294

THRUST WASHER

- flat, 1/2 x 1-3/8 x 1/8 inch

2шт.

8

19-5648

SPRING WASHER

- conical spring, 1/2 inch

3шт.

9

19-653

LOCK NUT

- hex lock, 1/2 inch NC

1шт.

12

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

13

19-5798

SET SCREW

SCREW - set, No. 8 NC x 5/8 inch

1шт.

17

60-6532T1

SUPPORT

BRACKET - mounting, cable

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

60-6425T1

CABLE,3048mm L

ASSEMBLY - throttle, Includes: Ref. 21

1шт.

Ref #20 - (120")

1шт.

21

129-37

NUT,#10-32

1шт.

22

A75447

BALL JOINT

JOINT - ball, throttle

1шт.

23

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 inch NF

1шт.

25

22-609

GROMMET

- protective, throttle cable

1шт.
