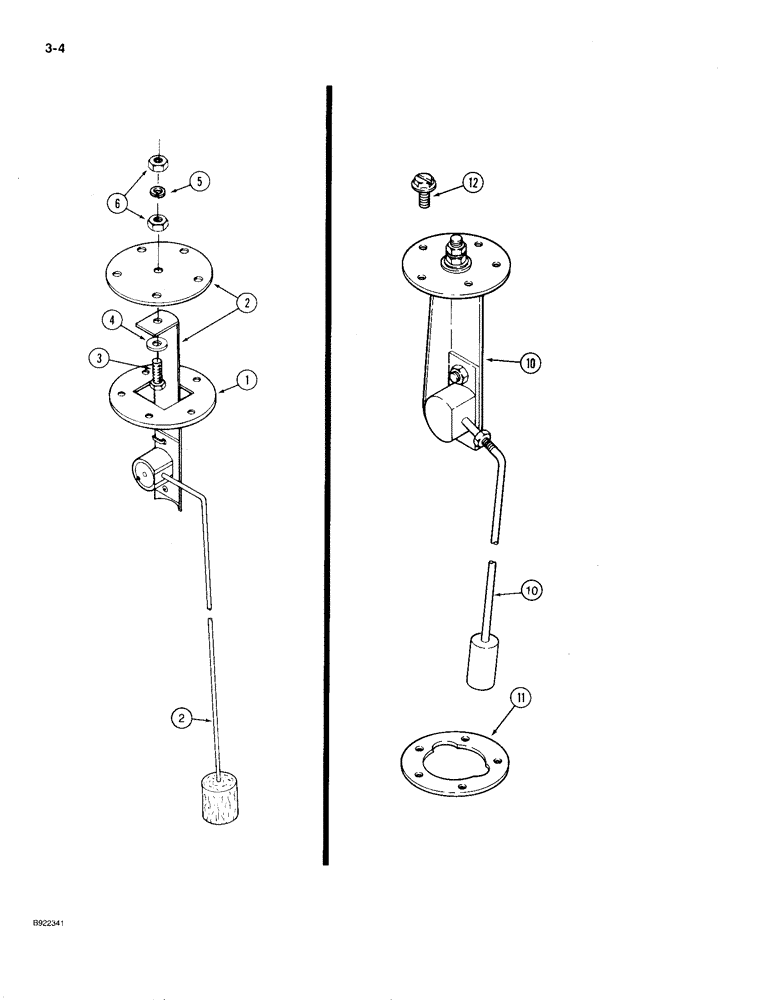

Запчасти Case IH 9230 (3-004) - FUEL SENSOR ASSEMBLY (03) - FUEL SYSTEM

60-6242T92

FUEL GAUGE

SENSOR ASSEMBLY - fuel (Replaced by 60-6831T91, Ref. 10 & 11), Includes: Ref. 1 - 6

1шт.

1

60-6243T1

GASKET

- fuel sensor

1шт.

2

NSS

NOT SOLD SEPARAT

SENSOR - fuel

1шт.

3

60-6244T1

TERMINAL CONNECTOR

TERMINAL - fuel sensor

1шт.

4

60-6245T1

ISOLATOR

INSULATOR - terminal

1шт.

5

19-603

LOCK WASHER,Ext Tooth, #10

WASHER - lock, No. 10

1шт.

6

129-37

NUT,#10-32

2шт.

10

60-6831T91

SENDER UNIT

SENSOR ASSEMBLY - fuel (Replaces 60-6242T92), Includes: Ref. 11

1шт.

11

104812C3

GASKET,3.05mm Thk

- sending unit

1шт.

12

463-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- hex washer head, No.10-24 x 1/2 inch

5шт.
