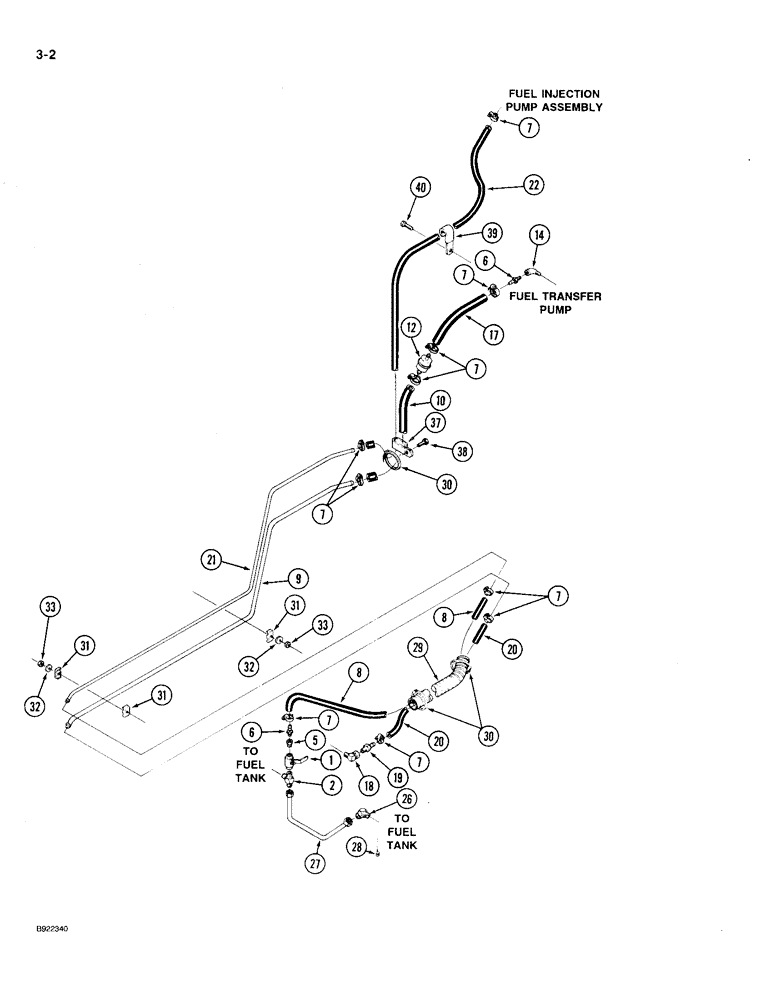

Запчасти Case IH 9230 (3-002) - FUEL LINES (03) - FUEL SYSTEM

1

31-1267

SHUT-OFF VALVE

VALVE - shut off, fuel

1шт.

2

31-494

TEE

- connector, 1/2 PT x 1/2 PT x 7/8 inch thread

1шт.

5

31-181

REDUCER

ADAPTER - straight, 1/2 PT x 1/4 inch PT

1шт.

6

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

2шт.

7

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 to 5/8 inch

10шт.

8

31-2940

FUEL HOSE

HOSE - fuel return, 56 inch (Order 32-12 and, Serial Range: cut-length)

1шт.

9

90-7071T1

FUEL TUBE,.375" OD

TUBE - supply, fuel

1шт.

10

31-2837

HOSE

9.5 mm ID x 685.8 mm, Tube to Filter; Order A21562X, and Cut to Required Length

1шт.

12

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

14

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

17

31-2836

FUEL HOSE

HOSE - filter to engine, 5 inch (Order 32-12, Serial Range: cut-length)

1шт.

18

217-1027

ELBOW,3/8" - 18 Male x 1/4" - 18 Female

- street, 90 degree, 3/8 male PT x 1/4 inch female PT

1шт.

19

31-1186

FITTING

- straight, 1/4 barb end x 1/4 inch PT

1шт.

20

31-2939

HOSE,7.9 mm ID x 1270.00 mm

Fuel Supply, Fitting to Tube; Order 31-2855, and Cut to Required Length 7.9 mm ID x 1270.00 mm

1шт.

21

90-7072T1

FUEL TUBE,.25" OD

TUBE - return, fuel

1шт.

22

31-2835

FUEL HOSE

HOSE - fuel return, at engine, 58 inch (Order 31-2855 and, Serial Range: cut-length)

1шт.

26

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 1/2 PT x 7/8 inch thread

1шт.

27

90-7460T1

FUEL TUBE,.625" OD

TUBE - tank, fuel crossover

1шт.

28

31-35

PLUG

- square head pipe, 1/2 inch PT

1шт.

29

50-2905T1

CONDUIT

GUARD - hose protector, 45 inch (Order S119717 and, Serial Range: cut-length)

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

31

50-2842T1

SUPPORT

CLAMP - tube

5шт.

32

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

37

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

1шт.

38

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange tap, 8 mm - 1.25 x 21 mm

1шт.

39

22-632

CLIP

- retaining

1шт.

40

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

1шт.
