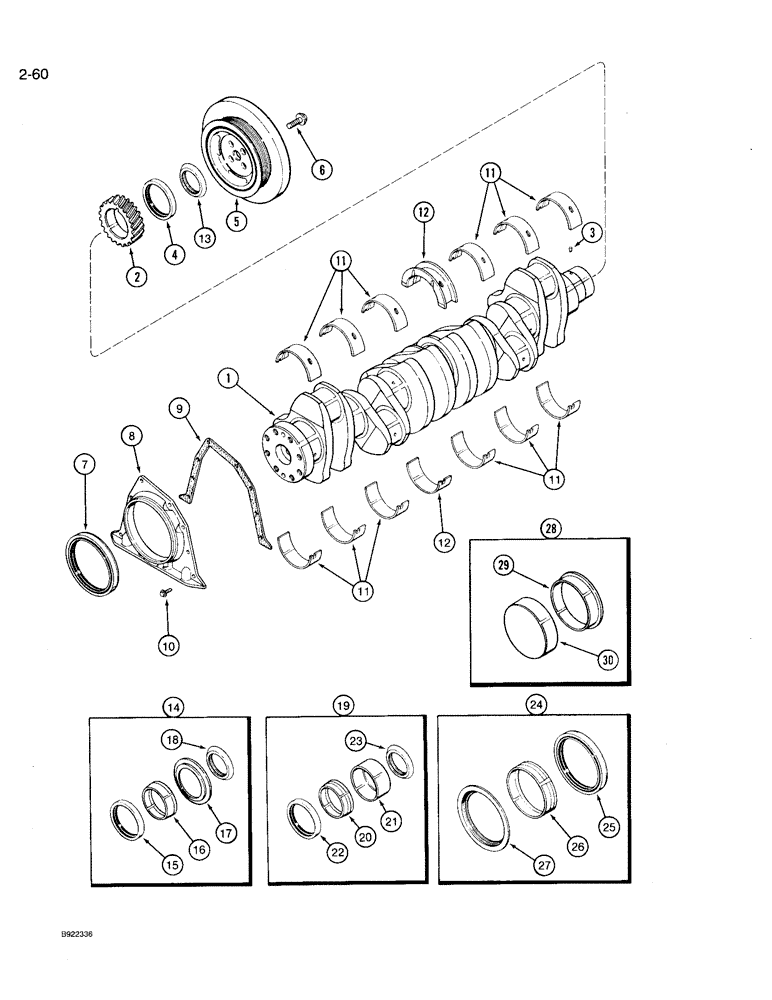

Запчасти Case IH 9230 (2-060) - CRANKSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 & 3

1шт.

2

J918380

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front, order Ref. 14, A77790 kit

1шт.

5

J914456

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, special, M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, rear, order Ref. 24, J909410 kit

1шт.

8

J921042

REAR COVER

RETAINER - seal, rear, replaces J907535 retainer

1шт.

9

J914301

GASKET

- retainer, rear

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

A77711

BEARING LINER

BEARING - main, upper and lower, standard

6шт.

11

A77712

BEARING LINER

BEARING - main, upper and lower, 0.25 mm undersize

6шт.

11

A77713

BEARING LINER

BEARING - main, upper and lower, 0.50 mm undersize

6шт.

11

A77714

BEARING LINER

BEARING - main, upper and lower, 0.75 mm undersize

6шт.

11

A77715

BEARING LINER

BEARING - main, upper and lower, 1.00 mm undersize

6шт.

12

A77706

BEARING LINER

BEARING - main thrust, upper and lower, standard

1шт.

12

A77707

SET

BEARING - main thrust, upper and lower, 0.25 mm undersize

1шт.

12

A77708

BEARING LINER

BEARING - main thrust, upper and lower, 0.50 mm undersize

1шт.

12

A77709

BEARING LINER

BEARING - main thrust, upper and lower, 0.75 mm undersize

1шт.

12

A77710

BEARING LINER

BEARING - main thrust, upper and lower, 1.00 mm undersize

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

14

A77790

SEAL KIT

KIT - oil seal, crankshaft front, replaces J908139 kit, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

19

A77791

GASKET KIT

KIT - wear sleeve, crankshaft, front, Includes: Ref. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

23

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

- dust, front seal

1шт.

24

A77809

GASKET KIT

KIT - oil seal, rear (Replaces J909410), Includes: Ref. 25 - 27; Tool No Longer Included in Kit, Available from OTC

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

28

J906081

SLEEVE

KIT - wear sleeve, crankshaft rear, Includes: Ref. 29 & 30

1шт.

29

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

30

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
