(2-042) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE

Запчасти Case IH 9230 (2-042) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

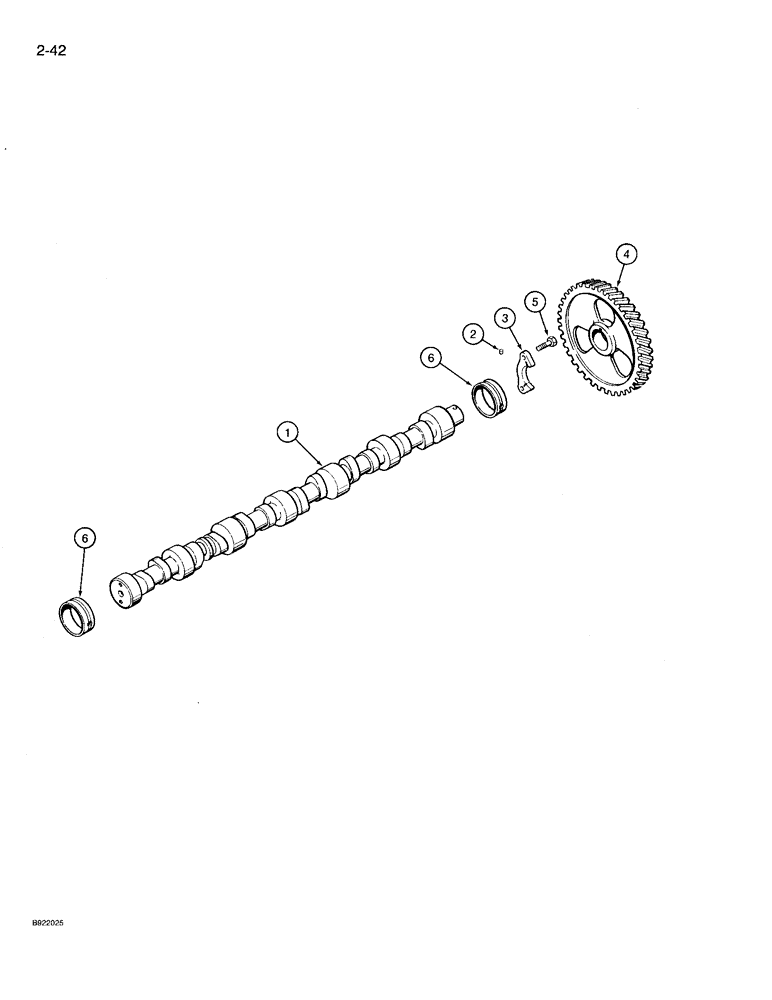

Схема запчастей Case IH 9230 - (2-042) - CAMSHAFT, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
6
5
6
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J917882

CAMSHAFT

ASSEMBLY - engine, Includes: Ref. 2

1шт.

Ref #1 - Replaced by J924471 driveshaft and J902332 Key 03/18/96

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J917882

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

J917883

PIN

- dowel, gear

1шт.

3

J914641

SUPPORT

- thrust, camshaft

1шт.

4

J917328

GEAR

- camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

- camshaft

7шт.
