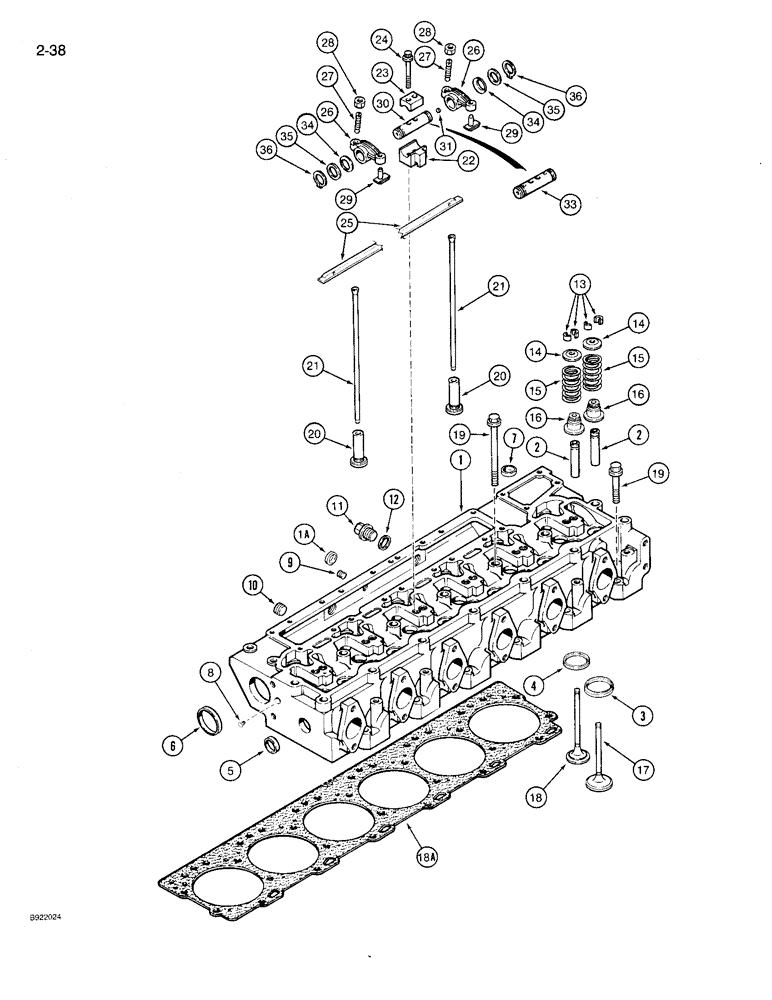

Запчасти Case IH 9230 (2-038) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

JR913111

HEAD

HEAD ASSEMBLY - cylinder, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 18A

1шт.

JC913111

HEAD (CYLINDER)

Return Part Number - use this part number to return head core for credit when using a remanufactured assembly

1шт.

J917768

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 18A

1шт.

JR968930

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

JC968930

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

J919919

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, Includes: Ref. 1A - 7

1шт.

1a

J912900

PLUG

PLUG - expansion, 24 mm

1шт.

2

J901187

GUIDE

GUIDE - stem, valve

12шт.

3

J908830

INSERT

INSERT - seat, intake valve

6шт.

3

J914839

INSERT

INSERT - seat, intake valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

4

J904716

INSERT

INSERT - seat, exhaust valve

6шт.

4

J914836

INSERT

INSERT - seat, exhaust valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of the head assembly and must be ordered separately.

1шт.

5

A77530

PLUG

PLUG - expansion, 30 mm OD

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

2шт.

7

A77590

PLUG

PLUG - expansion, 28,7 mm

5шт.

8

A77534

PLUG

PLUG - hex, 1/16 inch PT

1шт.

9

A77428

PLUG

PLUG - hex, 1/4 inch PT

1шт.

10

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

11

J904386

PLUG

PLUG - hex flange, 22 mm

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

2шт.

13

J901177

VALVE

KEEPER - valve

24шт.

14

J912976

RETAINER

RETAINER - valve spring

12шт.

15

J906412

VALVE SPRING

SPRING, VALVE

12шт.

16

J915707

SEAL

SEAL - intake and exhaust valve stem and guide

12шт.

17

J915506

VALVE,ENGINE,INLET,S

VALVE INTAKE VALVE - intake

6шт.

18

J902254

VALVE

VALVE - exhaust

6шт.

18a

J921850

GASKET

GASKET - cylinder head

1шт.

19

J917728

BOLT

BOLT - cylinder head, 160 mm long

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

20

J907240

TAPPET

TAPPET - valve, push rod

12шт.

21

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

22

J905870

SUPPORT

SUPPORT - shaft, rocker arm

6шт.

23

J901693

CLAMP

CLAMP - retaining, shaft

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point, 10 - 1.5 x 65 mm

12шт.

25

J919677

TUBE

MANIFOLD - oil, rocker arm

1шт.

26

J901717

ROCKER

ARM ASSEMBLY - rocker, Includes: Ref. 27 - 29

12шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

NUT - hex, jam, 3/8 inch NF

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

30

J915415

SHAFT

SHAFT - rocker, no longer available, order J919435 shaft, Ref. 33

6шт.

31

J907555

PLUG

PLUG - rocker arm shaft, use with J915415 rocker shaft (Ref. 30) only

12шт.

33

J919435

SHAFT

SHAFT - rocker, replaces J915415 shaft with plug

6шт.

34

J906100

SPRING CUP

WASHER - spring

12шт.

35

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

WASHER - flat, shaft end

12шт.

36

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

12шт.
