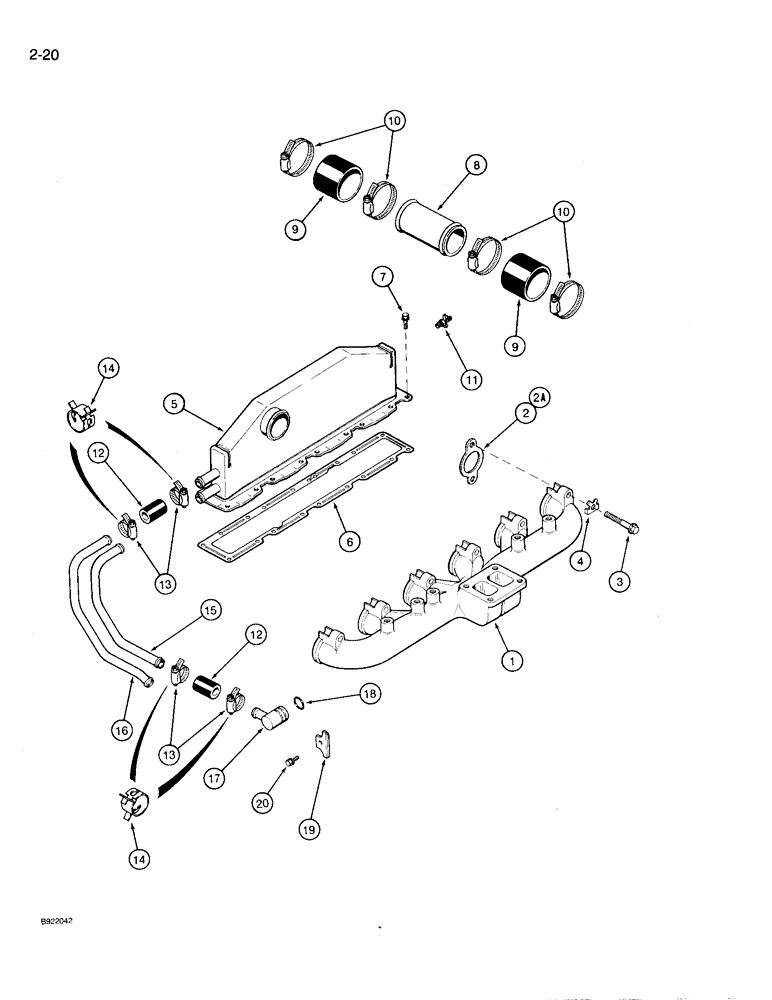

Запчасти Case IH 9230 (2-020) - MANIFOLDS, 6TA-830 ENGINE, 9230 TRACTOR ONLY, EXHAUST (02) - ENGINE

1

J906720

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- manifold, exhaust, 1.27 - 1.40 mm thick, no longer used, order J921787 gasket

6шт.

When replacing J911942 gasket with J921787 gasket, all 6 must be replaced.

1шт.

2a

J921787

GASKET

- manifold, exhaust, 1.0 mm thick, replaces J911942 gasket (set of 6)

1шт.

When replacing J911942 gasket with J921787 gasket, all 6 must be replaced.

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, manifold bolt

12шт.

5

J914501

COOLER

AFTERCOOLER - intake

1шт.

6

J914311

MANIFOLD GASKET

- intake manifold cover, aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold cover to cylinder head, aftercooler Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J914943

TUBE,63.5 mm OD x 140 mm L

- air, crossover, intake aftercooler

1шт.

9

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, intake aftercooler

2шт.

10

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia, hose retaining, intake aftercooler

4шт.

11

J909394

COCK, DRAIN

VALVE - drain, air bleed, intake aftercooler

1шт.

12

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Replaces J917791 Hose, Intake 18.50 mm ID x 63.00 mm

4шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adj, 11/16 - 1-1/4 inch dia, hose retaining, if used, intake aftercooler

8шт.

14

J918163

CLIP

CLAMP - hose retaining, if used, intake aftercooler

8шт.

15

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler

1шт.

16

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler

1шт.

17

J917394

ELBOW

CONNECTOR - water transfer, intake aftercooler

2шт.

18

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Connector to block, intake aftercooler -120, 70 Duro, .987" ID x .103" Thk

2шт.

19

J906439

PLATE

- mounting, intake aftercooler

1шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Intake aftercooler

1шт.
