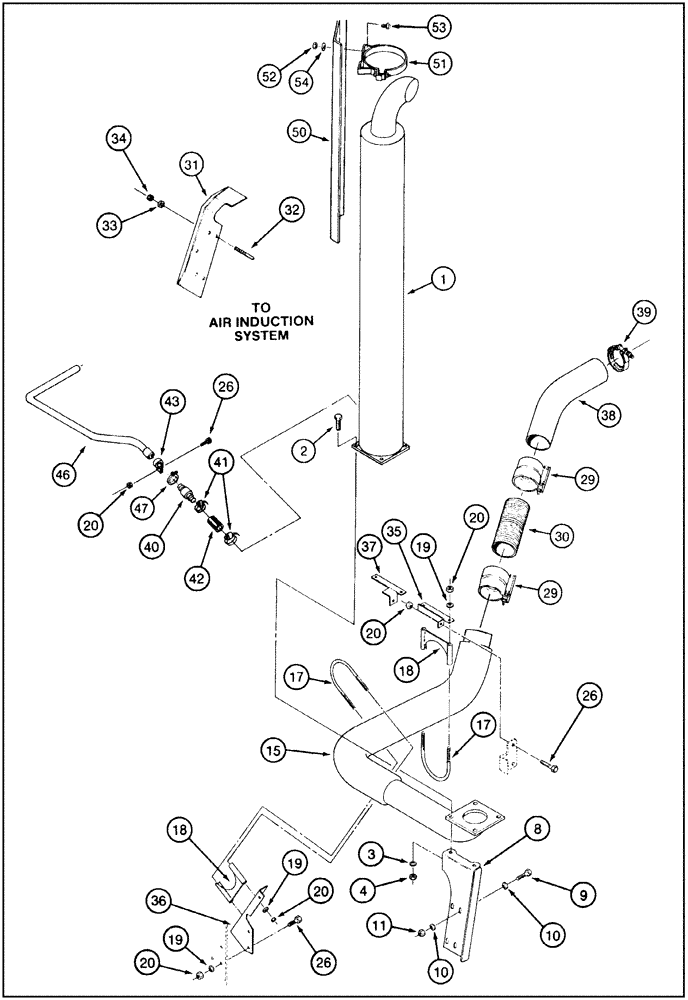

Запчасти Case IH 9230 (2-013A) - EXHAUST SYSTEM, WITH INSULATED EXHAUST TUBE (02) - ENGINE

1

90-7469T1

MUFFLER

- exhaust

1шт.

2

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

8

90-7756T1

ANCHOR

BRACKET - muffler mounting

1шт.

9

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex, 7/16 NC x 1 inch, grade 8

4шт.

10

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

11

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

4шт.

15

90-7874T1

EXHAUST SYSTEM PIPE,4 mm ID x 5 mm OD x 31.88, 30.59 mm L

TUBE - exhaust, at muffler, insulated

1шт.

17

32-322T1

U-BOLT,3/8" - 16 x 6.62"

- 3/8 inch NC

2шт.

18

32-323T1

STIRRUP

SADDLE - clamp, U-bolt

2шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

7шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

29

90-8319T1

CLAMP

- sleeve-type, Includes: hardware, exhaust tube to flex tubing (Replaces 90-7635T1)

2шт.

30

90-7875T1

EXHAUST SYSTEM PIPE,4" ID x 4.25" OD x 7.3" L

TUBE - flex, exhaust

1шт.

31

90-6746T2

SHIELD

- heat

1шт.

32

19-1049

U-BOLT,5/16" - 18 x 50.80mm W x 76.20mm L

2шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

35

90-7876T1

BRACKET

- clamp mounting, used with fabricated flywheel housing

1шт.

36

90-7773T1

BRACKET

- clamp mounting

1шт.

37

90-7885T1

BRACKET

- clamp mounting, used with cast aluminum flywheel housing

1шт.

38

90-6227T1

TUBE,13.6 mm L

- exhaust, turbocharger to flex tube

1шт.

39

A170807

CLAMP,102mm ID

exhaust tube retaining, at turbocharger

1шт.

40

A190699

VALVE

- check, aspirator tube

1шт.

41

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

42

1-4571

HOSE

4-1/2 inch (114 mm) long, cut from 1-4482 bulk hose, suction, cut from 1-4482 bulk hose, see below

1шт.

43

31-1349

MOUNTING CLIP

CLAMP - P-type

1шт.

46

90-7496T1

TUBE,1.5" OD

aspirator

1шт.

47

31-2434T1

CLAMP

- adjustable, tube

1шт.

50

90-6923T2

SHIELD

- heat, exhaust pipe

1шт.

Used with ROPS units only.

1шт.

51

A64803

CLAMP

shield

2шт.

Used with ROPS units only.

1шт.

52

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

Used with ROPS units only.

1шт.

53

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

4шт.

Used with ROPS units only.

1шт.

54

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

Used with ROPS units only.

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 120 inch (3048 mm) long

1шт.
