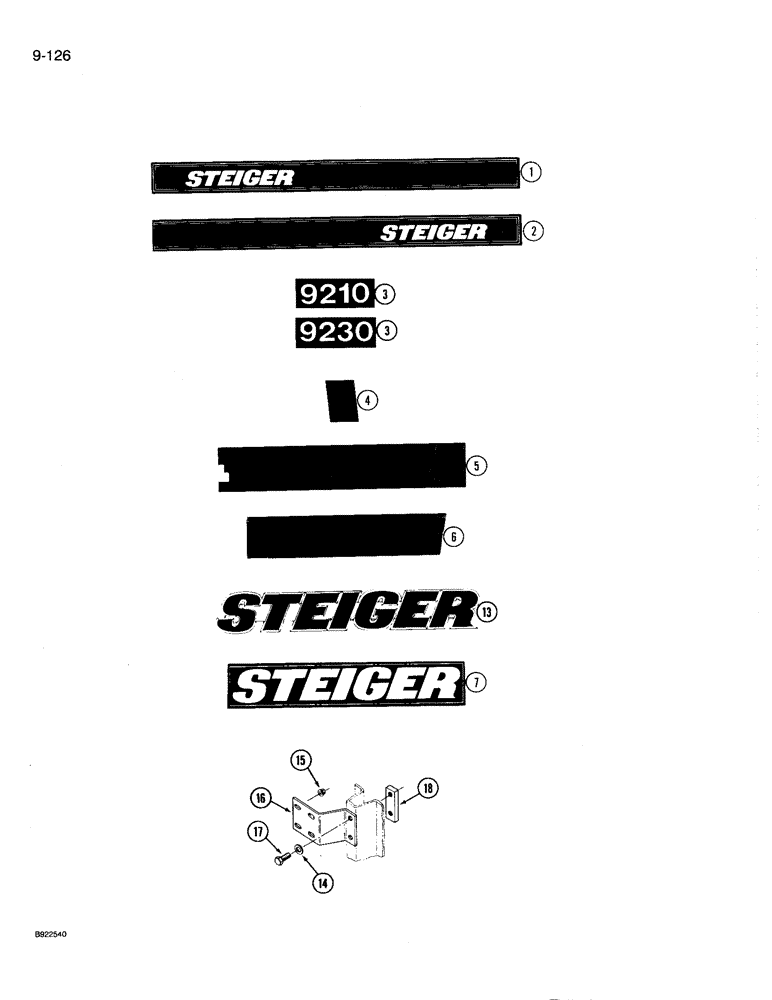

Запчасти Case IH 9230 (9-126) - DECALS (09) - CHASSIS/ATTACHMENTS

1

60-6434T1

DECAL

- hood side, left

1шт.

2

60-6433T1

DECAL

- hood side, right

1шт.

3

60-6499T1

DECAL

- hood side, 9210

2шт.

3

60-6500T1

DECAL

- hood side, 9230

2шт.

4

60-6401T1

DECAL

- cab, left side (Cab only)

1шт.

5

60-6513T1

DECAL

- cab, back side (Cab only)

1шт.

6

60-6385T1

DECAL

- cab, right side (Cab only)

1шт.

7

60-6512T1

DECAL

- Steiger

1шт.

13

2-4585T2

TYPE PLATE

EMBLEM - Steiger

1шт.

14

19-6047

WASHER

- flat, 9/32 x 1/2 x 1/16 inch

4шт.

15

9420182

NUT

- hex stamped

4шт.

16

70-2978T1

SUPPORT

BRACKET - emblem, left (Shown)

1шт.

16

70-2977T1

SUPPORT

BRACKET - emblem, right

1шт.

17

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

4шт.

18

70-2230T1

LARGE PLATE

PLATE - support, tapped

2шт.
