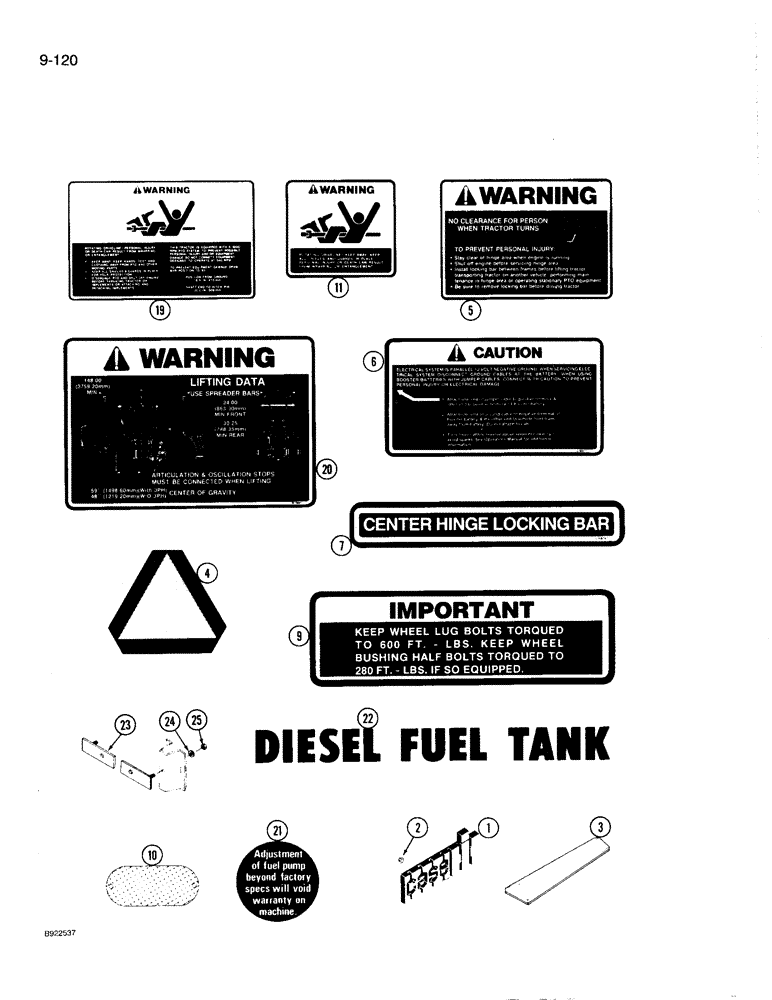

Запчасти Case IH 9230 (9-120) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A181437

EMBLEM CASE/IH

EMBLEM - front, Case IH

1шт.

1

A181538

EMBLEM CASE/IH

EMBLEM - overhead console, adhesive backed

1шт.

2

1536080C1

PUSH-ON NUT

- push-on type

1шт.

3

1968108C2

TRIM

TRIM - hood sight

1шт.

4

321-4311

DECAL

- SMV emblem, adhesive backed

1шт.

4

26-1

TRAFFIC SIGN

DECAL - slow moving vehicle, metal plate backed

1шт.

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - hex washer head tap, 1/4 NC x 3/8 inch

2шт.

5

2-6876T1

DECAL

- Warning, no clearance for person

1шт.

6

2-8003T1

DECAL

- Caution, electrical system is parallel 12 volt

1шт.

7

2-6874T1

DECAL

- Center Hinge Locking Bar

1шт.

9

2-7215T2

ADHESIVE

DECAL - Important, keep wheel lug bolts torqued

1шт.

10

1-2655T1

REFLECTOR

- red

2шт.

11

2-7126T1

DECAL

- Warning, rotating driveline

2шт.

19

2-7125T1

DECAL

- Warning, rotating driveline

1шт.

20

2-7346T1

DECAL

- Warning, lifting data

1шт.

21

A189007

DECAL

- Adjustment Of Fuel Pump

1шт.

22

26-242T1

DECAL

- Diesel Fuel Tank

1шт.

23

60-5969T1

LARGE PLATE

PLATE - mounting, medallion

1шт.

24

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch

2шт.

25

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

26

60-5998T1

DECAL

- Row Crop Special (Not shown)

1шт.

60-7030T1

DECAL

RH, hood, 9330

1шт.

60-7025T1

DECAL

LH, hood, 9330

1шт.
