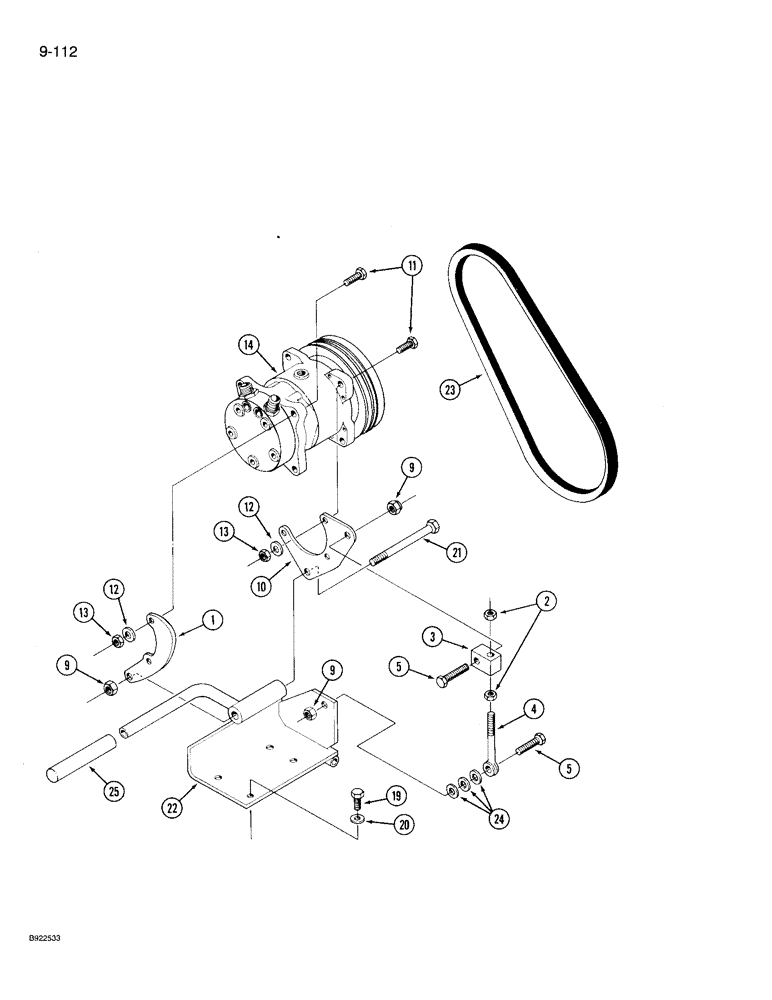

Запчасти Case IH 9230 (9-112) - COMPRESSOR MOUNTING AND DRIVE, AIR CONDITIONER, PRIOR TO P.I.N. JCB0028402 (09) - CHASSIS/ATTACHMENTS

1

2-5295T2

BRACKET

- pivot, compressor rear

1шт.

2

329-118

NUT,1/2"-20, G8

2шт.

3

1-6899T1

BLOCK

- adjusting, compressor belt

1шт.

4

22-1086T1

ROD

- adjusting, compressor belt

1шт.

5

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

10

90-6110T1

BRACKET

- pivot, compressor front

1шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

5шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

5шт.

13

825-1410

NUT,M10, Cl 8

5шт.

14

60-2921T94

AIRCOND. COMPRESSOR

- air conditioner, See Figure 9-116

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

9210, 9230, BOTH PRIOR TO P.I.N. JCB0028402 (9/90-5/95)

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

19

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 - 1.5 x 20 mm

4шт.

20

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

21

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

22

90-7339T1

MOUNTING PARTS

MOUNT - compressor

1шт.

23

6-1451

V-BELT,0.53" W x 51.75" L

0.53" W x 51.75", Compressor, Air conditioner

1шт.

24

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

25

70-5846T1

GRIP

HANDLE - grip

1шт.
