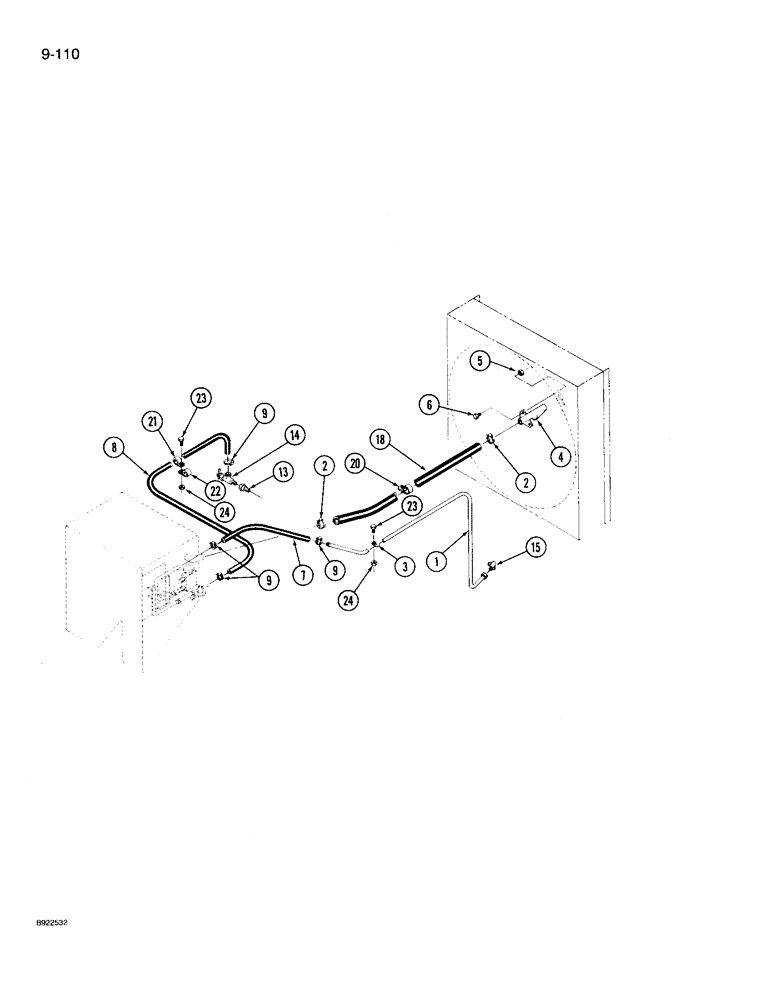

Запчасти Case IH 9230 (9-110) - HEATER PLUMBING (09) - CHASSIS/ATTACHMENTS

1

90-6720T3

HEATER TUBE,0.625" OD x 30.51" L

TUBE - heater

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

31-1776

MOUNTING CLIP

CLAMP - retaining, hose

1шт.

4

90-8315T1

TUBE

- evacuation, precleaner (Replaces 90-6830T1)

1шт.

5

27254R1

NUT

- hex lock, 5/16 inch NC

3шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

7

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 12 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 36 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

9

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

4шт.

13

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

CONNECTOR - straight, 3/8 PT x 1/2 inch PT

1шт.

14

301803R1

SHUT-OFF VALVE

VALVE - shut off (Replaces 941980R1)

1шт.

15

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

18

31-2215

HOSE,1.00" ID x 46.00"

Evacuation, Order 31-1502T1, and Cut to Required Length 1.00" ID x 46.00"

1шт.

20

32-343

MOUNTING CLIP

CLAMP - hose

1шт.

21

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

1шт.

22

31-1348

CLAMP

- hose

1шт.

23

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.
