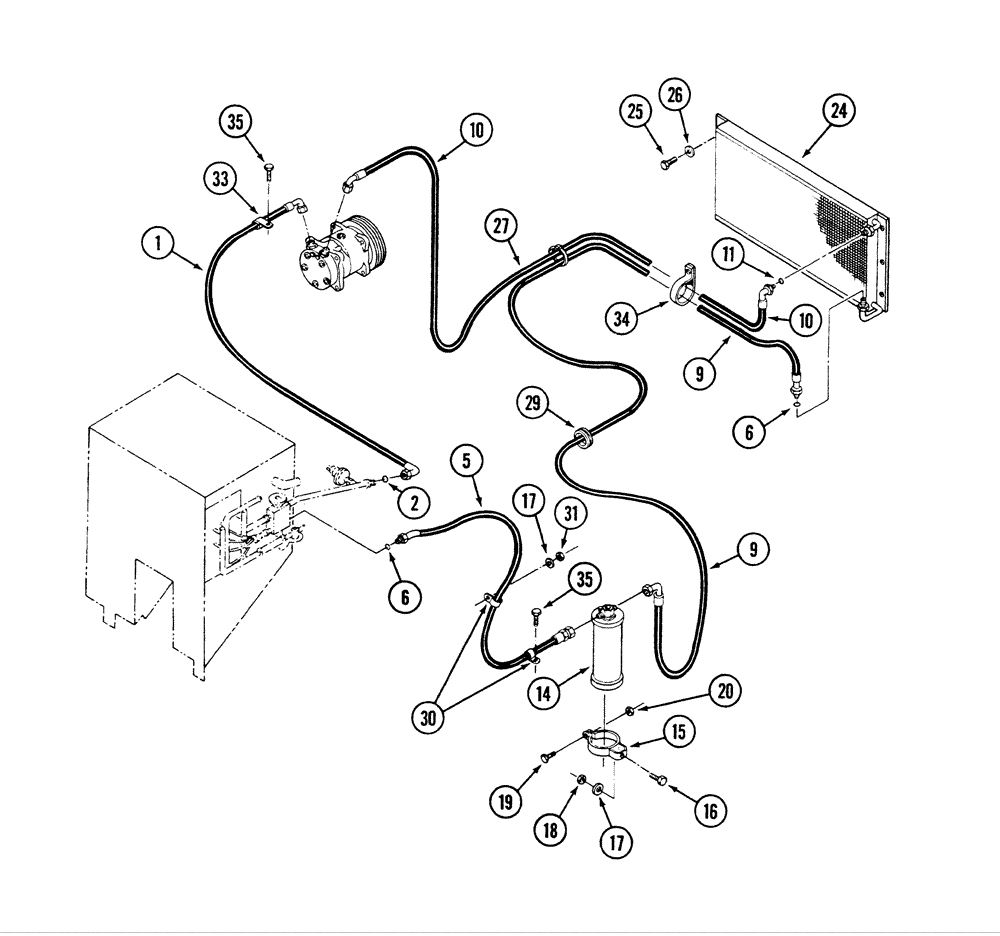

Запчасти Case IH 9230 (9-108) - AIR CONDITIONER PLUMBING, CONDENSER, RECEIVER-DRIER, PRIOR TO P.I.N. JEE0031850 (09) - CHASSIS/ATTACHMENTS

1

31-2576

HOSE,15.88mm ID x 1219.2mm L

48 inch (1219 mm) long, compressor to expansion valve

1шт.

2

31-1809

O-RING

9/16 ID x 1/16 inch wide

1шт.

5

31-2751

HOSE,7.94mm ID x 1981.2mm L

78 inch (1981 mm) long

1шт.

6

31-1807

O-RING

O-RING, 5/16 ID x 1/16 inch wide

2шт.

9

31-2575

HOSE,7.94mm ID x 2641.6mm L

104 inch (2642 mm) long

1шт.

10

31-2912

HOSE ASSY.

HOSE - discharge, 5/16 inch ID, prior to P.I.N. JCB0028400

1шт.

10

31-2982

HOSE ASSY.

HOSE - discharge, 13/32 ID x 113 inch (2870 mm) long, P.I.N. JCB0028400 and after

1шт.

11

31-1808

O-RING

O-RING, 7/16 ID x 1/16 inch wide

1шт.

14

60-5818T2

CONDENSER

RECEIVER-DRIER - air conditioning

1шт.

15

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

19

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

20

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

24

60-4815T1

CONDENSER

- air conditioning, prior to P.I.N. JCB0028400

1шт.

24

60-6710T1

CONDENSER

- air conditioning, P.I.N. JCB0028400 through JEE0031849

1шт.

25

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

6шт.

27

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long, nylon

1шт.

29

248-1146

GROMMET,5/8" ID x 7/8" Groove Dia

- rubber, 7/8 inch groove diameter, hose protector

1шт.

30

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

3шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

33

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID

1шт.

34

31-1411

CLAMP

- P-type, hose

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.
