(9-090) - CAB AIR CONDITIONER AND HEATER MODULE, PRIOR TO S/N JCB0028400

Запчасти Case IH 9230 (9-090) - CAB AIR CONDITIONER AND HEATER MODULE, PRIOR TO S/N JCB0028400 (09) - CHASSIS/ATTACHMENTS

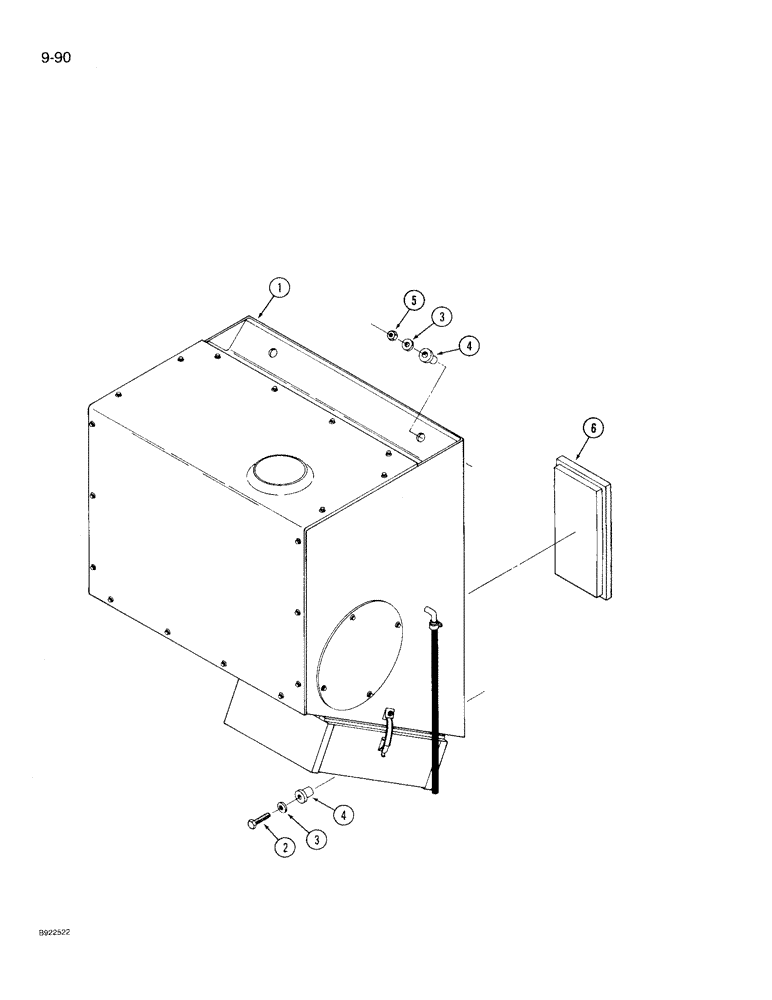

Схема запчастей Case IH 9230 - (9-090) - CAB AIR CONDITIONER AND HEATER MODULE, PRIOR TO S/N JCB0028400 (09) - CHASSIS/ATTACHMENTS
5
4
3
6
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-4780T94

AIR CONDITIONER

MODULE ASSEMBLY - air conditioner and heater, See Figures 9-094 and 9-096

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

4шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

60-3846T2

FILTER

- air, recirculation

2шт.
