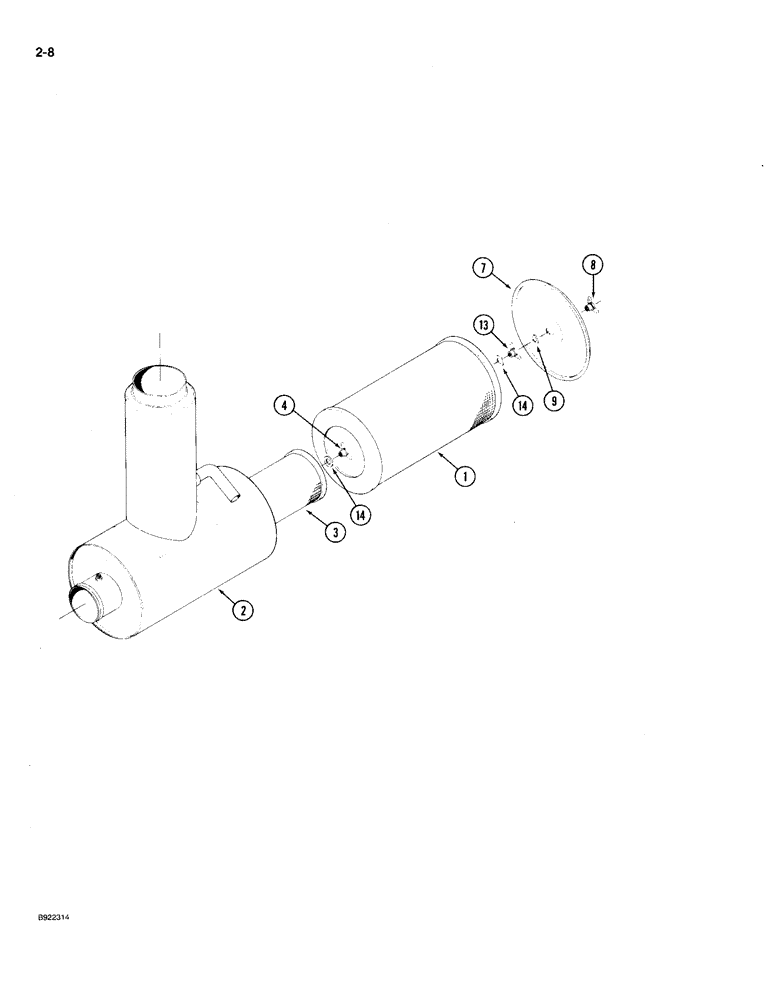

Запчасти Case IH 9230 (2-008) - AIR CLEANER ASSEMBLY (02) - ENGINE

90-6122T91

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 14

1шт.

1

90-6443T1

FILTER, ELEMENT

ELEMENT - primary

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

90-6444T1

FILTER, ELEMENT

ELEMENT - secondary

1шт.

4

90-6518T1

WING NUT

NUT - wing, element retainer

1шт.

90-6442T91

COVER ASSY

COVER ASSEMBLY - air cleaner, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - air cleaner

1шт.

8

90-6516T1

WING NUT

NUT - wing, cover retainer

1шт.

9

90-6519T1

RING

CLIP - retainer, wing nut

1шт.

13

90-6516T1

WING NUT

NUT - wing, element retainer

1шт.

14

90-6517T1

SEALING WASHER

WASHER - sealing

2шт.
