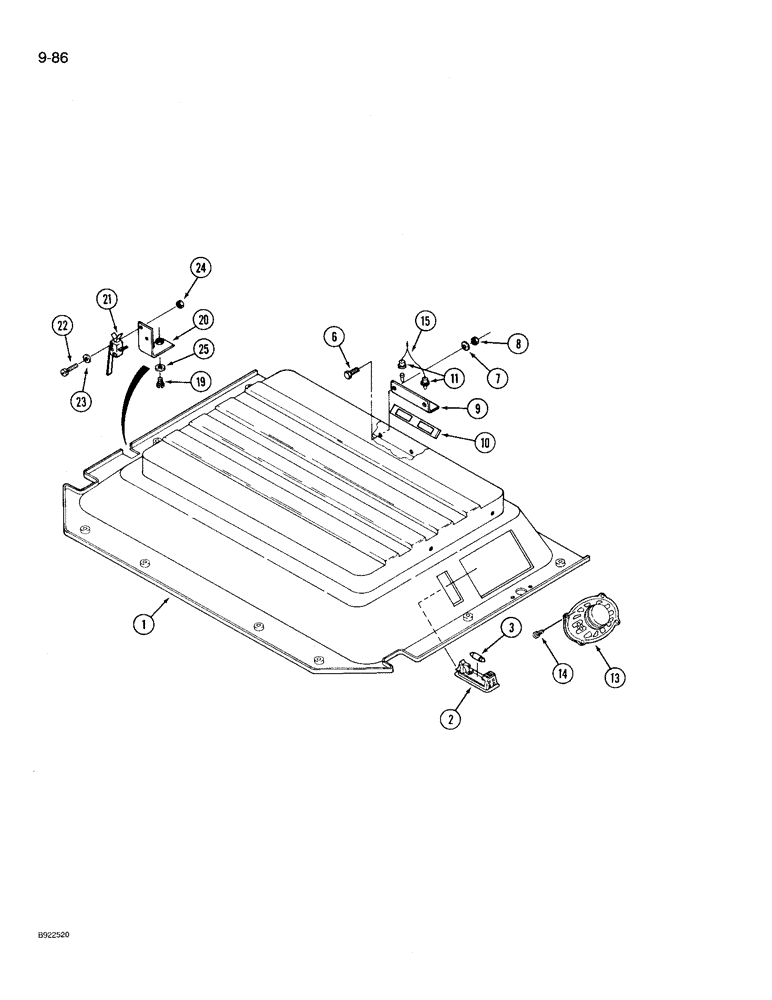

Запчасти Case IH 9230 (9-086) - CAB HEADLINER (09) - CHASSIS/ATTACHMENTS

1

60-6254T3

PADDING

HEADLINER - cab

1шт.

2

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: Ref. 3

1шт.

3

3050958R1

BULB,K, 12V, 10W

- lamp, No. 1141 K, 12V, 10W

1шт.

6

163-45

SCREW,Hex, #10 - 24 x 1/2", Gr 5

- hex head machine, No. 10 x 1/2 inch

2шт.

7

495-31022

WASHER,#10

2шт.

8

225-14110

NUT,#10-24

2шт.

9

60-6299T1

ANGLE BAR

PLATE - mounting, lamp

1шт.

10

60-4029T1

LARGE PLATE

PLATE - diffuser, lamp

1шт.

11

B50213

BULB

- lamp, No. 50

2шт.

13

60-5748T1

SPEAKER

- radio

2шт.

14

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- pan head machine, No. 10 NC x 5/8 inch

8шт.

15

60-6516T1

HARNESS

- overhead, See Figure 4-008

1шт.

19

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

20

60-6518T1

SUPPORT

BRACKET - mounting, switch

1шт.

21

60-6515T1

SWITCH

- dome lamp

1шт.

22

19-1035

SCREW,Rnd Hd, #4 - 40 x 1"

- round head machine, No. 4 NC x 1 inch

2шт.

23

19-6100

WASHER

- flat, No. 4

2шт.

24

225-14104

NUT,#4-40

- hex, No. 4 NC

2шт.

25

495-31022

WASHER,#10

2шт.
