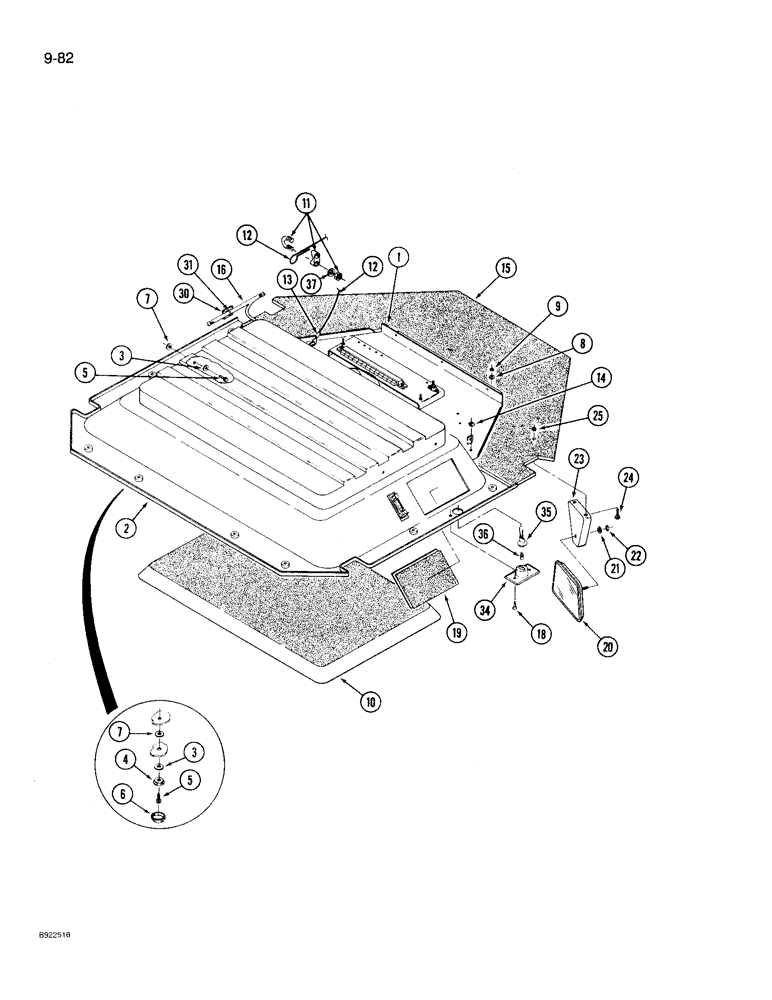

Запчасти Case IH 9230 (9-082) - CAB OVERHEAD CONSOLE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR - overhead, console, See Figure 9-084 for correct door

1шт.

2

60-6254T3

PADDING

HEADLINER - cab, See Figure 9-086

1шт.

3

495-31022

WASHER,#10

9шт.

4

1-8674

CAP WASHER

- trim cap

7шт.

5

60-6688T1

SCREW

- hex washer head tap, No. 10-16 x 3/4 inch

7шт.

6

60-5920T1

CAP

- trim

7шт.

7

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

7шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

10

60-6351T1

FOAM

PAD - insulation

1шт.

11

70-5275T1

MOUNTING CLIP

CLAMP - connecting

2шт.

12

60-4137T1

ROPE

WIRE ROPE - plastic coated

2шт.

13

70-5269T1

FERRULE

- wire rope

2шт.

14

19-5524

NUT

- J-type clip, 1/4-20

2шт.

15

60-5924T1

NOISE PROTECTION

PAD - insulation

1шт.

16

60-6516T1

HARNESS

- overhead wiring, See Figure 4-008

1шт.

18

24379R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - round head tap, No. 8 NS x 1/2 inch

2шт.

19

60-5922T1

FOAM

PAD - cover, speaker

2шт.

20

A177462

MIRROR

ASSEMBLY - rear view, Includes: Ref. 21 & 22

1шт.

21

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external lock, 1/4 inch

1шт.

22

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

23

64-86T3

SUPPORT

BRACKET - rear view mirror

1шт.

24

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- hex flange machine, No. 10-24 x 3/4 inch

2шт.

25

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

30

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

31

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

34

83882C91

LAMP

ASSEMBLY - console, Includes: Ref. 35 & 36

1шт.

35

107329C1

WIRE HARNESS

SOCKET - lamp

1шт.

36

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

37

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
