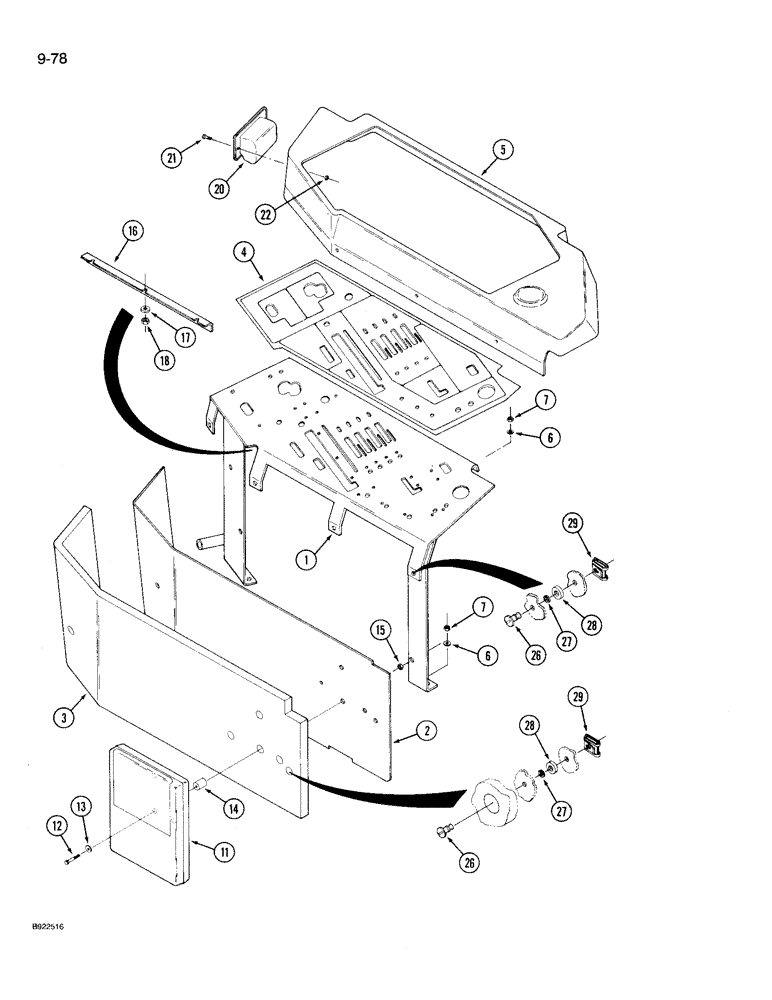

Запчасти Case IH 9230 (9-078) - CAB CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

60-6412T3

BRACKET

PANEL - console, control

1шт.

2

60-6106T1

SHIELD

PANEL - wraparound, console

1шт.

3

60-6063T1

COVER

- panel, console

1шт.

4

60-6416T1

DECAL

- control console

1шт.

5

60-6436T1

COVER

- console

1шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

11

97079C2

BOX

- operators manual

1шт.

12

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

3шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

14

60-6062T1

SPACER

- manual box

3шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

16

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

17

495-31022

WASHER,#10

3шт.

18

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

20

2-6138T91

ASH TRAY

ASHTRAY - cigar

1шт.

21

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

- flat head machine, No. 8 NC x 5/8 inch

2шт.

22

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

2шт.

26

19-6136

STUD

- quarterturn

11шт.

27

L103349

WASHER

RETAINER - split ring

11шт.

28

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

11шт.

29

A36042

CLIP

RECEPTACLE - stud, quarter turn

11шт.
