Запчасти Case IH 9230 (9-064) - CLOTH SEAT, AIR RIDE SUSPENSION, CAB UNITS (CONTD) (09) - CHASSIS/ATTACHMENTS

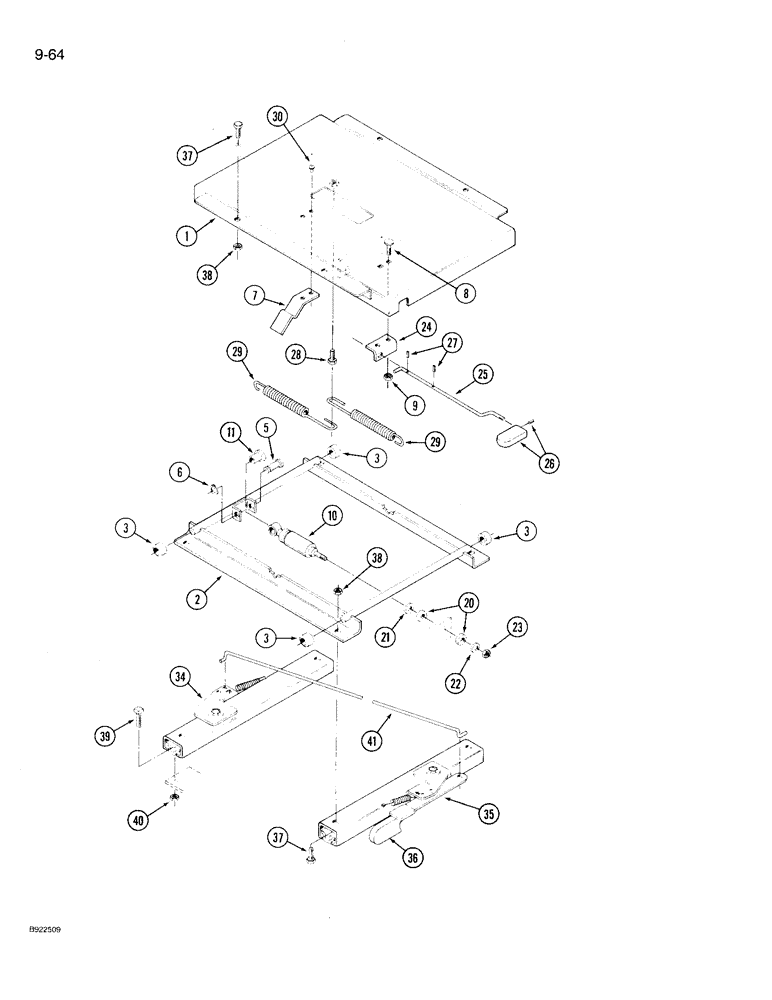

Схема запчастей Case IH 9230 - (9-064) - CLOTH SEAT, AIR RIDE SUSPENSION, CAB UNITS (CONTD) (09) - CHASSIS/ATTACHMENTS
9
2
10
28
29
22
6
23
7
25
3
5
39
3
30
26
20
37
29
1
24
11
21
38
3
27
40
41
36
37
34
3
38
35
8

Артикул

Название

Примечание

Количество

1987159C3

SEAT ASSY.

SEAT ASSEMBLY - air ride suspension, Includes: Ref. 1 - 41, 1 - 45 on Figure 9-060, 1 - 21 on Figure 9-062 and 1 - 55 on Figure 9-066

1шт.

1344001C2

SET OF PARTS

ISOLATOR ASSEMBLY - suspension (with lateral adjustment), Includes: Ref. 1 - 30

1шт.

1

1344023C1

SIDE PLATE

PLATE - lateral isolator track

1шт.

2

1344024C1

SUPPORT

- lateral isolator track

1шт.

3

NSS

NOT SOLD SEPARAT

ROLLER - suspension

4шт.

5

1344025C1

PIVOT PIN

PIN - shock absorber

1шт.

6

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

7

1344026C1

SPRING

- latch

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

9

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

1987219C1

SET OF PARTS

SHOCK ABSORBER ASSEMBLY - seat, Includes: Ref. 10 & 11

1шт.

refer to shock kit P/N 1987219C1 - includes 10-23 radiator, also includes retaining ring A27804.

1шт.

10

NSS

NOT SOLD SEPARAT

SHOCK ABSORBER - suspension

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - shock absorber

1шт.

20

A49679

BUSHING

- shock absorber

2шт.

21

A49678

WASHER

- flat, 1 inch

1шт.

22

1974732C1

WASHER

- flat

1шт.

23

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

24

1344027C1

ANGLE BAR

MOUNT - latch, lateral isolator

1шт.

25

1344029C1

ROD

- latch

1шт.

26

1344031C1

GRIP

KNOB - isolator, lateral

1шт.

27

138-2057

PIN,5/32" x 5/8", Coiled

2шт.

1987290C1

SET OF PARTS

KIT - spring, isolator, Includes: Ref. 28 & 29

1шт.

28

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - isolator

2шт.

30

NSS

NOT SOLD SEPARAT

RIVET - latch spring

2шт.

34

1981823C1

SLIDE

- seat, right

1шт.

ref #34 & 35 (P/N's 1981823C1 & 1981822C1) aren't included with kit

1шт.

35

1981822C1

SLIDE

ASSEMBLY - seat, left (with handle), Includes: Ref. 36

1шт.

ref #34 & 35 (P/N's 1981823C1 & 1981822C1) aren't included with kit

1шт.

36

1981829C1

WINDOW STAY

KNOB - slide, seat

1шт.

37

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

8шт.

38

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

6шт.

39

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

40

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

4шт.

41

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

Выбрано товаров: 36
