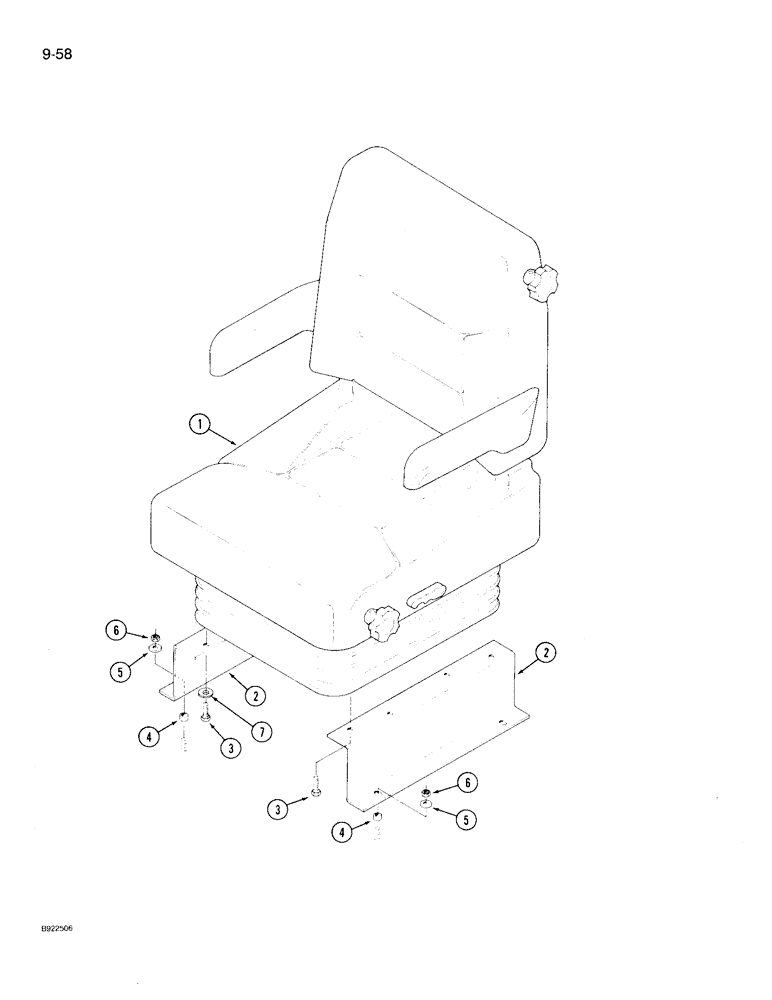

Запчасти Case IH 9230 (9-058) - SEAT MOUNTING, AIR RIDE AND MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY - air ride or mechanical suspension, See Figures 9-060 or 9-066 for correct seat

1шт.

2

1977735C1

SUPPORT

BRACKET - mounting, seat

2шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 - 1.25 x 20 mm

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

SPACER - mounting, seat (Replaces 19-5724)

4шт.

Ref #4 - Use 425-108 Nut

1шт.

5

495-21038

WASHER,5/16"

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

6

27254R1

NUT

- hex lock, 5/16 inch NC

4шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
