Запчасти Case IH 9230 (9-054) - CAB DOOR AND LATCH, WITH RETURN SPRING AT LATCH LEVER, REF. 44 (09) - CHASSIS/ATTACHMENTS

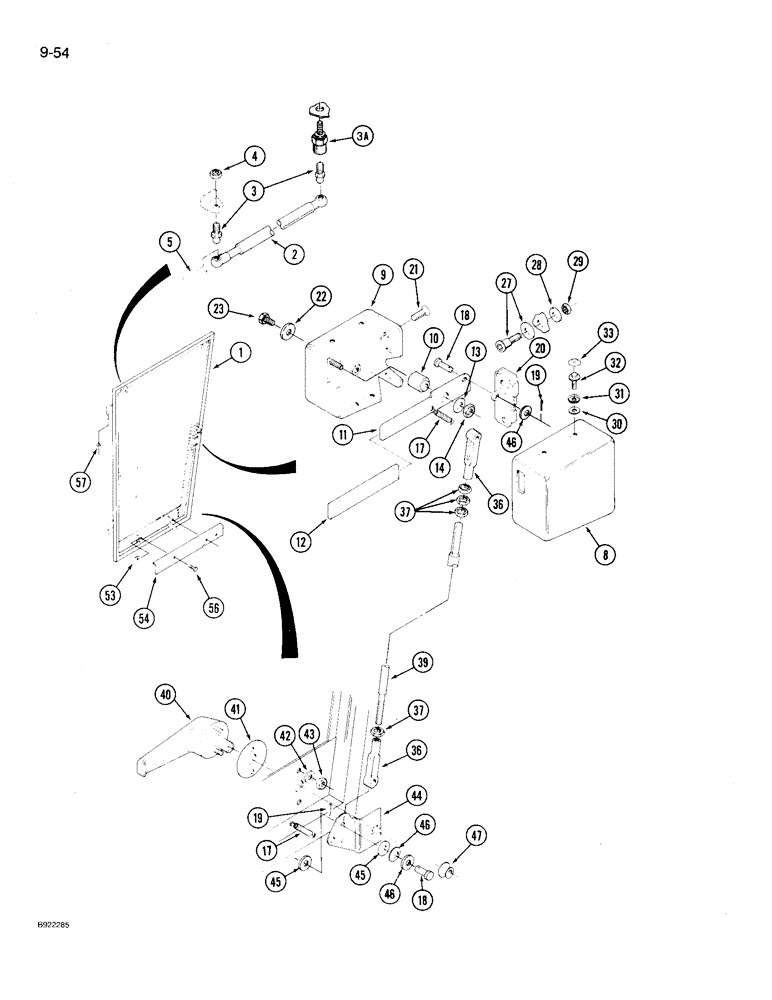

Схема запчастей Case IH 9230 - (9-054) - CAB DOOR AND LATCH, WITH RETURN SPRING AT LATCH LEVER, REF. 44 (09) - CHASSIS/ATTACHMENTS
42
46
19
13
3a
29
46
2
37
43
9
8
12
40
3
21
46
5
23
1
4
41
32
19
17
14
54
44
18
39
53
22
57
28
36
37
31
27
45
45
18
20
56
17
11
33
30
36
10
47

Артикул

Название

Примечание

Количество

1

60-6284T1

CABIN DOOR

DOOR - cab

1шт.

2

1280263C1

CYLINDER ASSY.

CYLINDER - door

1шт.

3

3234063R1

BALL STUD,M10 x 1.5

STUD - ball

2шт.

3a

60-6256T1

ANCHOR

RETAINER - ball stud to cab frame

1шт.

4

825-1410

NUT,M10, Cl 8

1шт.

5

3233348R1

CLIP

- retaining

2шт.

8

60-6269T1

COVER

- box, latch

1шт.

9

60-6265T1

HOOD

MOUNT - latch

1шт.

10

60-6260T1

BUSHING

- pivot, handle

1шт.

11

60-6263T1

LEVER

- actuating, latch

1шт.

12

60-6267T1

GRIP

MOLDING - latch

1шт.

13

60-6261T1

WASHER

- flat, plastic

1шт.

14

19-5777

LOCK NUT

- hex lock, 5/16 inch NC

4шт.

17

A163012

SPRING

- return, tension

2шт.

18

427-4077

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch

2шт.

19

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

20

60-5001T1

LATCH

- door

1шт.

21

443-13120

SCREW,Cross Flat Hd, 5/16"-18 x 1 1/4"

- flat head machine, 5/16 NC x 1-1/4 inch

3шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

27

60-4193T1

LATCH

STRIKER - door latch, includes special washer

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

29

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

30

495-31022

WASHER,#10

3шт.

31

1-8674

CAP WASHER

- trim cap

3шт.

32

60-6688T1

SCREW

- hex washer head tap, No. 10-16 x 3/4 inch

3шт.

33

60-5920T1

CAP

- trim

3шт.

36

116383

CLEVIS

YOKE - clevis, adjustable

2шт.

37

425-114

NUT,1/4"-28, G5

4шт.

39

60-6262T1

THREADED ROD

ROD - actuating, latch

1шт.

40

60-6324T1

HANDLE

- door

1шт.

41

60-5062T2

GASKET

- door handle

1шт.

42

495-31022

WASHER,#10

2шт.

43

19-351

NUT,#10 - 24, GA

NUT - hex lock, No. 10 NC

2шт.

44

60-6323T1

PIVOT

LEVER - latch actuating

1шт.

45

19-6046

WASHER

- flat plastic, 1/4 x 5/8 x 1/8 inch

3шт.

46

19-5924

SPRING WASHER

- spring, 1/4 inch

2шт.

47

19-6255

RING RACE

BEARING - pivot, latch

1шт.

53

131-617

NUT,Ret, J, 1/4"-20

- J-type, 1/4 inch NC

2шт.

54

60-6282T1

COVER

- door, lower

1шт.

56

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

57

60-4585T1

SPACER

SHIM - adjustment, door

1шт.

60-7083T1

HANDLE

door, push button

1шт.

Выбрано товаров: 43
