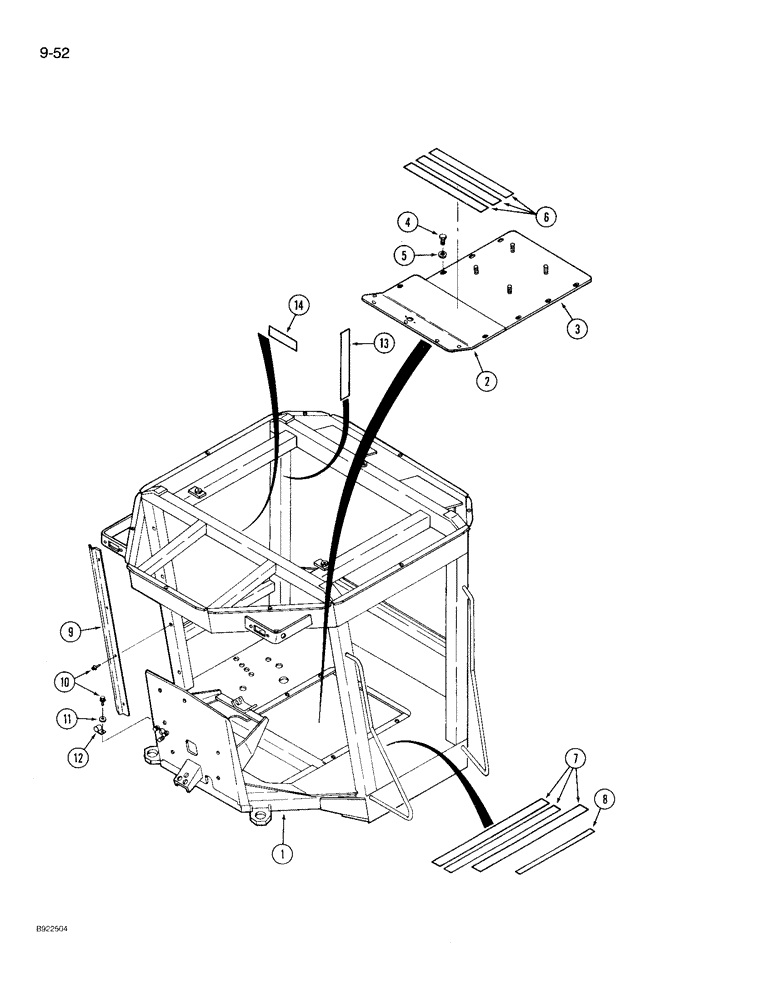

Запчасти Case IH 9230 (9-052) - ROPS FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - ROPS, See Figure 9-044 for correct frame

1шт.

2

60-6342T2

LARGE PLATE

PLATE - floor access, front

1шт.

3

60-6307T1

COVER

PLATE - floor access, rear

1шт.

4

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

13шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

13шт.

6

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 25 inch (Order 26-211T1 and, Serial Range: cut-length)

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 38 inch (Order 26-211T1 and, Serial Range: cut-length)

1шт.

8

60-4599T1

BAND

STRIP - non skid, 1 x 25 inch (Order seal 60-4598T1 and, Serial Range: cut-length)

1шт.

9

60-5855T1

GUARD

- wire, ROPS post

1шт.

10

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - flange head tap, No. 10 NC x 1/2 inch

6шт.

11

495-31022

WASHER,#10

2шт.

12

31-1349

MOUNTING CLIP

CLAMP - wire harness

2шт.

13

60-6468T1

DECAL

- Warning, avoid injury or death

1шт.

14

60-5866T1

DECAL

- Caution, when operating this vehicle use hearing protection

1шт.
