(2-004) - RADIATOR AND ATTACHING PARTS

Запчасти Case IH 9230 (2-004) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

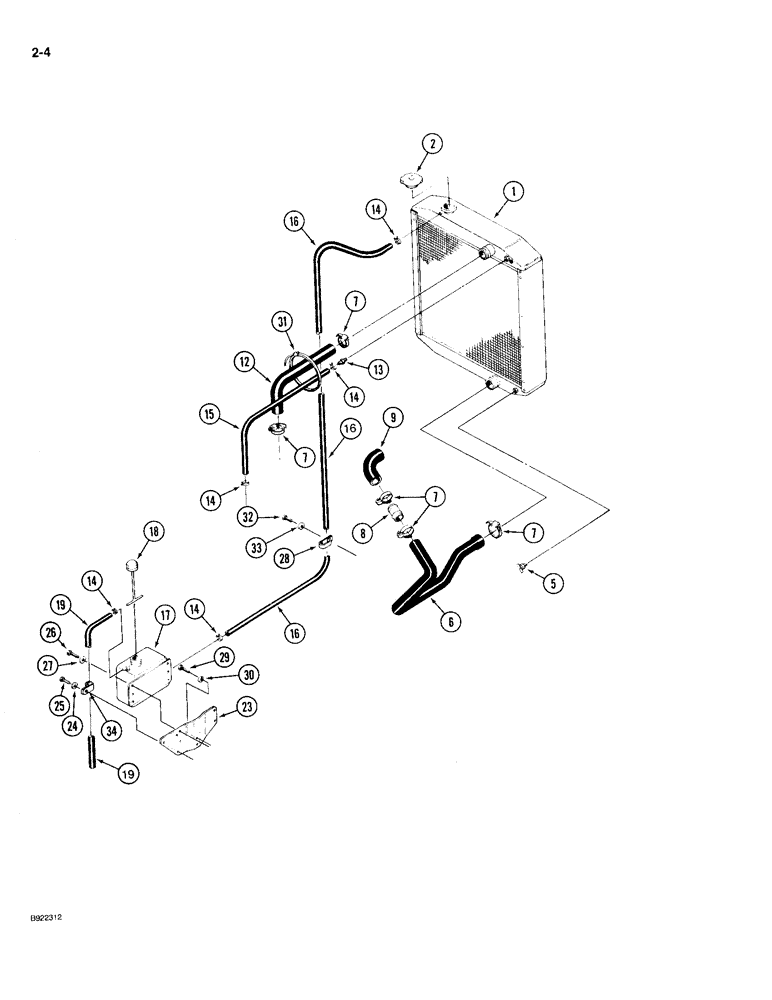

Схема запчастей Case IH 9230 - (2-004) - RADIATOR AND ATTACHING PARTS (02) - ENGINE
8
33
14
14
6
16
14
30
1
15
17
19
16
5
31
28
13
7
34
14
29
18
19
9
32
7
16
23
25
2
24
14
27
26
12
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A190762

RADIATOR

ASSEMBLY - engine cooling, Includes: Ref. 2

1шт.

2

90-6633T1

CAP

- radiator

1шт.

5

A23656

COCK, DRAIN

VALVE - drain, radiator

1шт.

6

90-7345T2

RADIATOR HOSE,2.00" ID, 2.50" ID x 18.58", SAE J20, SAE 20R4

- Lower 2.00" ID, 2.50" ID x 18.58", SAE J20, SAE 20R4

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - hose

5шт.

8

90-6575T2

TUBE,2 mm OD x 3 mm L

- hose connector

1шт.

9

J920762

ELBOW

HOSE - elbow, water (Replaces J909389)

1шт.

12

90-7344T1

RADIATOR HOSE,2.25" ID x 15.64", SAE J20, SAE 20R4

Upper 2.25" ID x 15.64", SAE J20, SAE 20R4

1шт.

13

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose, 1/4 to 5/8 inch

5шт.

15

32-203

HOSE

- rubber, 3/8 x 23 inch (Order 32-12 and, Serial Range: cut-length)

1шт.

16

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Coolant recovery (Order J126767 hose and cut to length) 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

17

A184395

RESERVOIR

TANK - overflow

1шт.

18

1547924C1

CAP

- tank (Replaces A184079)

1шт.

19

31-1208

HOSE,0.38" ID x 12.00"

overflow (Order 32-12 and cut to length) 0.38" ID x 12.00"

1шт.

23

90-7333T2

BRACKET

MOUNT - support, oveflow tank

1шт.

24

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , No longer required 7/16"

1шт.

25

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 10 - 1.5 x 35 mm

1шт.

26

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

28

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

2шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm (Replaces 614-12025)

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

19-135

CABLE TIE

STRAP - tie

2шт.

32

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

33

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

34

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.
