Запчасти Case IH 9230 (9-046) - ROOF CAP, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS

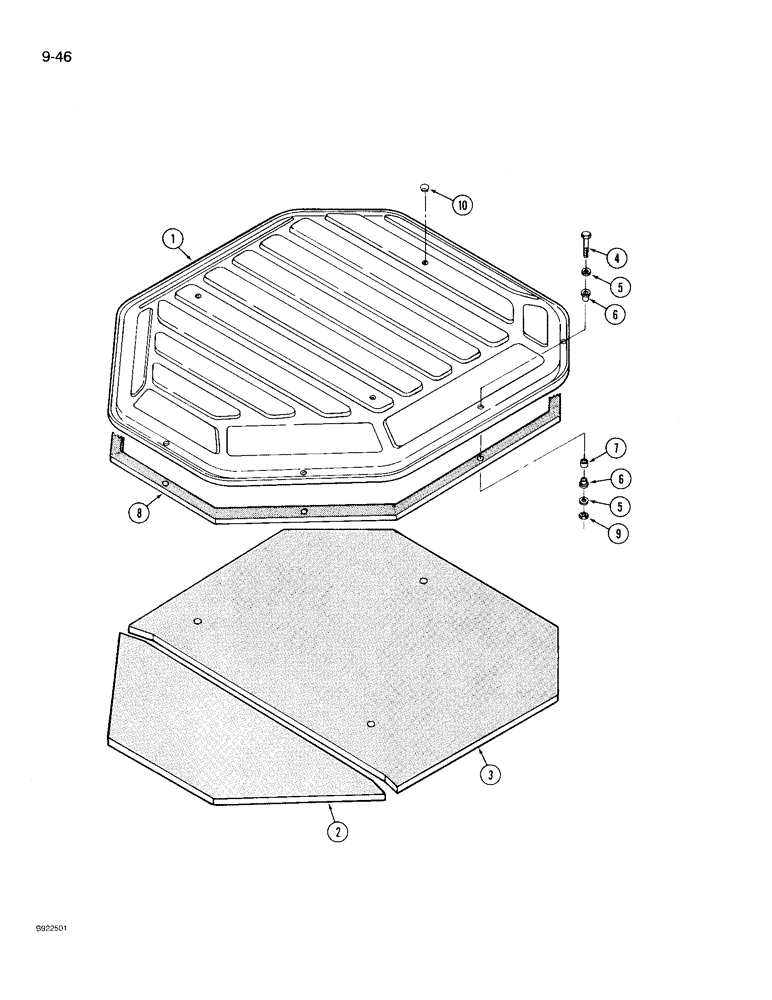

Схема запчастей Case IH 9230 - (9-046) - ROOF CAP, CAB AND ROPS (09) - CHASSIS/ATTACHMENTS
7
9
1
5
6
10
4
2
3
8
5
6

Артикул

Название

Примечание

Количество

1

60-5970T1

ROOF

CAP - roof top

1шт.

2

60-4657T1

FOAM

INSULATION - roof (Cab only)

1шт.

3

60-4450T2

FOAM

INSULATION - roof (Cab only)

1шт.

4

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

4шт.

5

9421394

WASHER

- flat, 1/4 x 1 x 1/16 inch

16шт.

6

60-1826T1

BUSHING,6.35mm ID x 14.43mm OD x 14.22mm L

- roof top

16шт.

7

60-4584T1

WASHER

SPACER - bushing

8шт.

8

60-4583T1

FOAM

SEAL - roof cap, 228 inch (Order 60-4595T1 and, Serial Range: cut-length)

1шт.

9

111626C1

NUT

- hex lock, 1/4 inch NC

8шт.

10

31-2595

PLUG

- lift holes

3шт.

Выбрано товаров: 10
