Запчасти Case IH 9230 (9-038) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

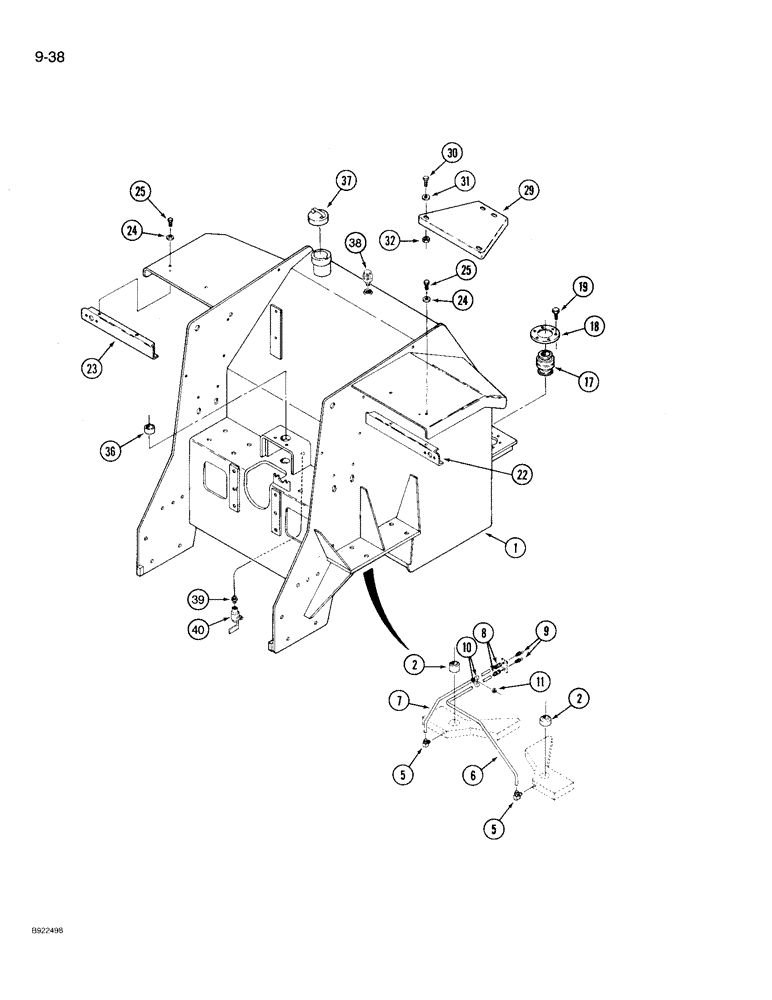

Схема запчастей Case IH 9230 - (9-038) - REAR FRAME (09) - CHASSIS/ATTACHMENTS
39
30
37
32
38
2
17
2
22
24
19
29
7
5
40
25
11
25
23
24
31
5
9
36
8
18
1
10
6

Артикул

Название

Примечание

Количество

1

70-6317T1

FRAME

ASSEMBLY - rear (Replaces 70-5816T1), Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self aligning

2шт.

5

31-599

ELBOW

- 90 degree, 1/8 inch PT

2шт.

6

50-3122T1

TUBE

- grease

1шт.

7

50-3123T1

TUBE

- grease

1шт.

8

31-2785

FITTING

CONNECTOR - straight, 1/8 inch PT

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight 1/8 PT x 21/32 inch

2шт.

10

31-1862

CLAMP

- tube

2шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

17

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge, frame

1шт.

18

2-10T1

RETAINER

- bearing

1шт.

Ref #18 - If looking for a snap ring type retainer, see parts book for 9300 series machines. The p/n is 101-21354.

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

22

70-6361T1

BRACKET

PLATE - mounting, right light

1шт.

23

70-5314T1

MOUNTING PARTS

PLATE - mounting, left light

1шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

25

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

29

70-6051T2

BRACKET

- support, frame plate hose

1шт.

30

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

32

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

2шт.

36

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- pivot, frame rear

2шт.

37

A162191

CAP

- fuel

1шт.

38

1971726C1

BREATHER,1/4" - 18

- fuel tank

1шт.

Ref #38 - Is plastic.

1шт.

Ref #38A - 90-7732T1 Breather (Metal)

1шт.

39

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - hex, 1/2 inch PT, brass

1шт.

40

31-1267

SHUT-OFF VALVE

VALVE - tank drain

1шт.
