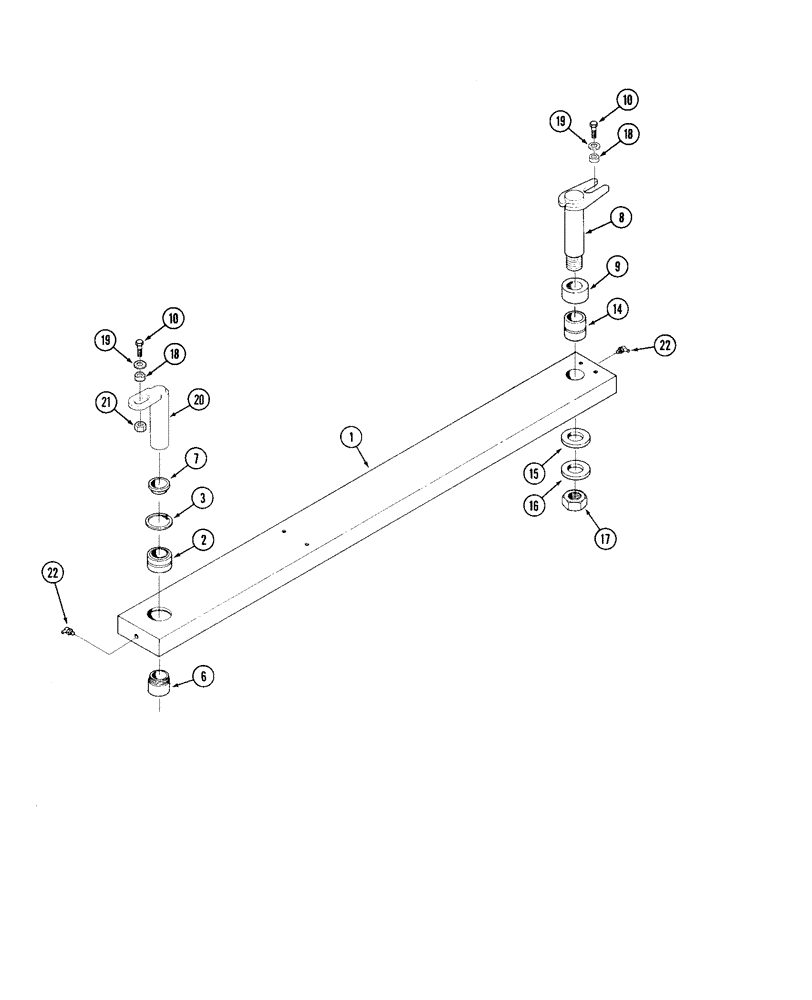

Запчасти Case IH 9230 (9-034) - FRAME CONNECTING LINK (09) - CHASSIS/ATTACHMENTS

70-6245T93

LINK, CONNECTING

LINK ASSEMBLY - frame connecting, Includes: Ref. 1 - 3, Replaces 70-5914T92

1шт.

1

70-6246T3

LINK

- frame connecting (Replaces 70-5905T1)

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING - spherical radial

1шт.

3

70-6083T1

RING, SNAP

RING - snap, bearing retaining

1шт.

6

70-5916T1

SPACER

- connecting link, bottom

1шт.

7

70-6084T1

SPACER

- connecting link, top

1шт.

8

70-6193T2

PIN ASSY.

PIN - link retaining

1шт.

9

70-5915T2

SPACER

1шт.

10

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

14

70-6105T2

BUSHING,44.5mm ID x 57.12mm OD x 50.8mm L

- connecting link

1шт.

15

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

1шт.

16

19-5636

WASHER,39.62mm ID x 88.9mm OD x 9.53mm Thk

1шт.

17

19-916

NUT

Jam

1шт.

18

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

19

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

20

70-6232T2

PIN,44.32mm OD x 162.31mm L

1шт.

21

425-1010

NUT,5/8"-11, G5

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.
