Запчасти Case IH 9230 (9-028) - HOOD AND REAR SUPPORT, WITH ONE PIECE HOOD LATCH AT REAR SUPPORT (09) - CHASSIS/ATTACHMENTS

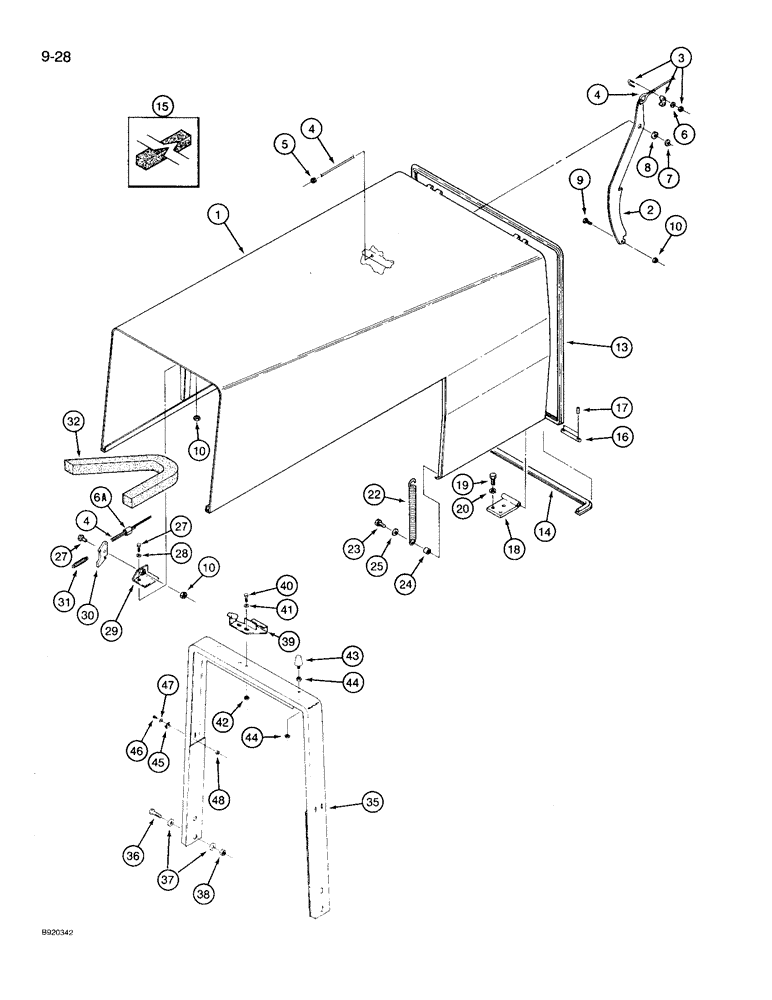

Схема запчастей Case IH 9230 - (9-028) - HOOD AND REAR SUPPORT, WITH ONE PIECE HOOD LATCH AT REAR SUPPORT (09) - CHASSIS/ATTACHMENTS
44
16
27
13
46
18
39
45
6
10
42
48
20
19
10
47
5
23
8
7
1
6a
38
35
2
27
37
3
25
14
22
17
30
43
24
36
28
4
31
29
41
4
40
32
4
44
9
10
15

Артикул

Название

Примечание

Количество

1

70-5870T2

HOOD ASSY.

HOOD - engine cover

1шт.

2

70-5811T2

ROD, ADJUSTMENT

LEVER - retainer, open hood

1шт.

3

70-5275T1

MOUNTING CLIP

CLAMP - wire rope

1шт.

4

70-5887T1

ROPE

- wire, latch (143 inch long) (Order 70-5252T1 and, Serial Range: cut-length)

1шт.

5

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BEARING - nylon, wire rope

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch

2шт.

6a

70-5269T1

FERRULE

- retainer, wire rope

1шт.

7

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

10

425-106

NUT,3/8"-16, Cl 5

5шт.

13

70-5635T1

SEAL

- foam, hood to grille, 140 inch long (Order 70-5259T1 and, Serial Range: cut-length)

1шт.

14

70-6052T1

SEAL

- foam, hood front, 34 inch long (Order 70-5259T1 and, Serial Range: cut-length)

1шт.

15

60-6637T1

FOAM

- seal, hood front, 2-1/2 inch long (Order 70-6214T1 and, Serial Range: cut-length)

1шт.

16

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hinge, hood

2шт.

17

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

4шт.

18

70-4263T1

HINGE

- hood

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch

6шт.

22

70-5764T1

SPRING

- assist, hood opening

2шт.

23

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

24

70-2806T1

SPACER

- spring mounting

2шт.

25

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

27

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

29

70-5912T2

MOUNTING PARTS

MOUNT - latch

1шт.

30

70-6178T1

LATCH

- retainer, hood

1шт.

31

90-7524T1

SPRING

- return, latch

1шт.

32

60-6705T1

FOAM

SEAL - foam, hood

1шт.

35

70-5889T2

SUPPORT

- hood, rear

1шт.

36

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

37

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

8шт.

38

19-653

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

39

70-6389T1

BRACKET

- hood retainer latch

1шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

41

19-1059

WASHER

- flat, 13/32 x 1-1/4 x 7/64 inch

2шт.

42

425-106

NUT,3/8"-16, Cl 5

2шт.

43

70-2816T1

BUMPER

- hood adjustment, rubber

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

45

32-69

CLAMP

- throttle cable

1шт.

46

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- pan head machine, No. 10 NC x 5/8 inch

1шт.

47

495-31022

WASHER,#10

1шт.

48

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

Выбрано товаров: 43
