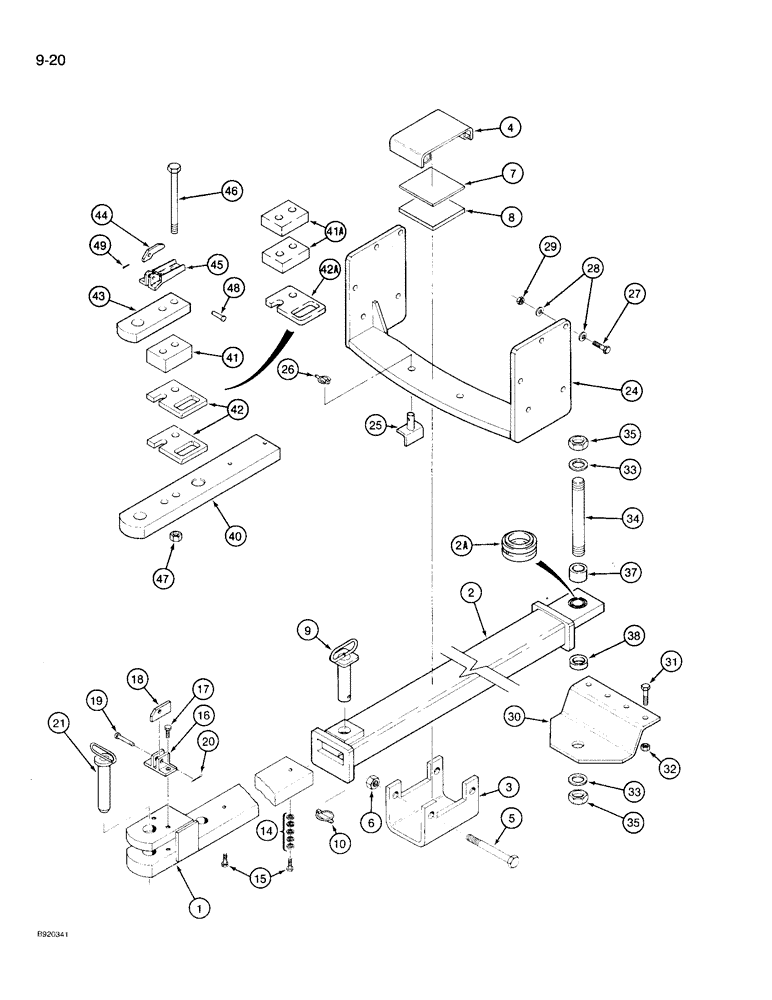

Запчасти Case IH 9230 (9-020) - DRAWBAR, EXTENDABLE, WITHOUT THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

1

70-6149T1

DRAWBAR

- extendable, if used

1шт.

2

70-6291T1

TUBE,2181.4, 76.2 mm Length

ASSEMBLY - receiver, drawbar (Replaces 70-5857T1), Includes: Ref. 2A

1шт.

2a

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

- self-aligning

1шт.

3

70-4516T1

CLEVIS

YOKE - cradle, drawbar

1шт.

4

70-4555T1

COVER

- retaining, slide

1шт.

5

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

6

19-375

LOCK NUT,1" - 8, GB

NUT - hex lock, 1 inch NC

2шт.

7

70-5253T1

PLATE

- slide spacer

1шт.

8

70-4513T2

SKID/SHOE

SLIDER - plastic, drawbar

1шт.

9

70-1731T1

PIN

- retaining, drawbar, 6.43 inches

1шт.

10

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

1шт.

14

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

5шт.

15

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

16

70-1737T1

LATCH

- retaining, pin

1шт.

17

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

18

1-4906

LATCH

LEVER - retaining, pin

1шт.

19

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

21

70-1735T1

PIN

- retaining, drawbar, 9.19 inches

1шт.

24

70-5917T2

HANGER

- drawbar

1шт.

25

70-1937T2

SHAFT LOCK

PIN - retaining, drawbar

2шт.

26

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik

2шт.

27

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8

10шт.

28

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

20шт.

29

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

30

70-6293T1

LARGE PLATE

PLATE - support, drawbar hinge (Replaces 70-3150T1)

1шт.

31

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

32

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

33

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

34

70-3137T1

PIN,44.37mm OD x 323.85mm L

- drawbar and center link, 12.75 inches

1шт.

35

70-6221T1

JAM NUT

- hex jam, 1-3/4 inch NF

2шт.

37

70-3138T1

SPACER

- drawbar tube

1шт.

38

70-5913T1

SPACER

- drawbar tube

1шт.

70-6254T91

DRAWBAR

ASSEMBLY - extendable, if used, Includes: Ref. 40 - 49

1шт.

40

NSS

NOT SOLD SEPARAT

DRAWBAR - extendable

1шт.

41

70-6264T1

LARGE PLATE

BLOCK - spacer, 2-1/4 inch thick, if used

1шт.

41a

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick, if used

2шт.

42

70-6263T1

LARGE PLATE

PLATE - spacer block, used with 70-6264T1 block only

2шт.

42a

70-6263T2

LARGE PLATE

PLATE - spacer block, used with 70-6264T2 block only

1шт.

43

70-6265T1

LARGE PLATE

PLATE - hammerstrap, latch

1шт.

44

1965315C2

LEVER

- hammerstrap, latch

1шт.

45

70-6249T1

LATCH

MOUNT - latch (Machined)

1шт.

46

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex special, 1 NC x 9-1/4 inch

2шт.

47

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

48

527-204

CLEVIS PIN,M12 x 43

PIN - clevis

1шт.

49

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

70-4662T1

PIN

O/A 9.88 inch long x 1.747/1.745 inch dia., 1-3/4" 12UNF thread on both ends, thread length on one end 2.75 inch, thread length on the other end is 1.0 inch

1шт.
