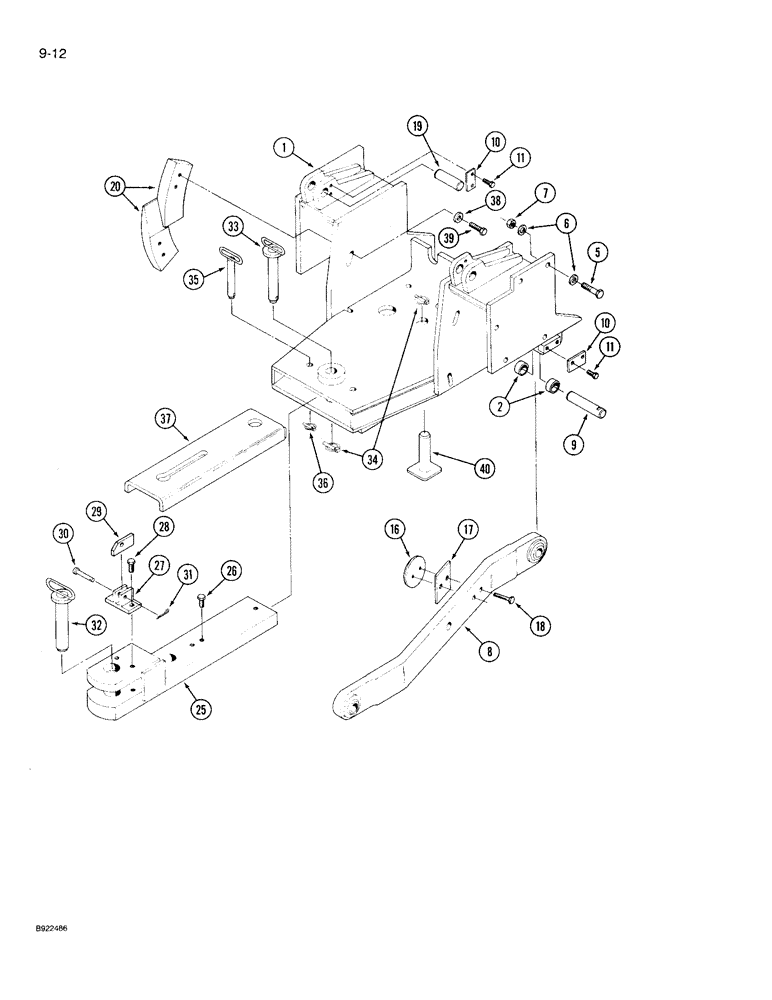

Запчасти Case IH 9230 (9-012) - HITCH LOWER LINK, MOUNTS AND DRAWBAR, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

1

70-5597T91

MOUNTING PARTS

MOUNT ASSEMBLY - lower link, Includes: Ref. 2

1шт.

2

90-6971T2

SPACER

BEARING - inner race

4шт.

5

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

10шт.

6

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 9/64 inch

20шт.

7

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

8

70-6466T1

ARM

- lower link, draft

2шт.

9

70-5501T1

PIN

- draft arm

2шт.

10

70-3082T2

LARGE PLATE

BLOCK - retaining, pin

4шт.

11

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

8шт.

16

70-6513T1

LARGE PLATE

PLATE - wear (Replaces 2-2516T2)

2шт.

17

70-4633T2

SHIM

- wear plate (Replaces 70-4633T1)

2шт.

18

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- hex, 1/2 NC x 2-1/4 inch, grade 8

4шт.

19

70-5662T1

PIN

- lift cylinder, bottom

2шт.

20

70-5721T1

LARGE PLATE

PLATE - wear, LH (shown)

2шт.

70-5720T1

LARGE PLATE

PLATE - wear, RH

2шт.

25

70-6254T91

DRAWBAR

- extendable (With three point hitch), See Figure 9-020 for drawbar without three point hitch

1шт.

26

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

1шт.

27

70-1737T1

LATCH

- pin retaining

1шт.

28

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

29

1-4906

LATCH

LEVER - pin retaining

1шт.

30

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

31

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

32

70-1735T1

PIN

- drawbar pull

1шт.

33

70-1731T1

PIN

- drawbar retaining

1шт.

34

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

2шт.

35

70-5667T1

PIN ASSY.

PIN - drawbar retaining

2шт.

36

517758R91

SPLIT PIN/SAFETY PIN

PIN- klik, locking

2шт.

37

70-5666T1

CHANNEL

- drawbar

1шт.

38

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 5/8 x 1-5/16 x 5/32 inch

8шт.

39

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

8шт.

40

70-5797T1

PIN

- retainer, drawbar channel

1шт.
