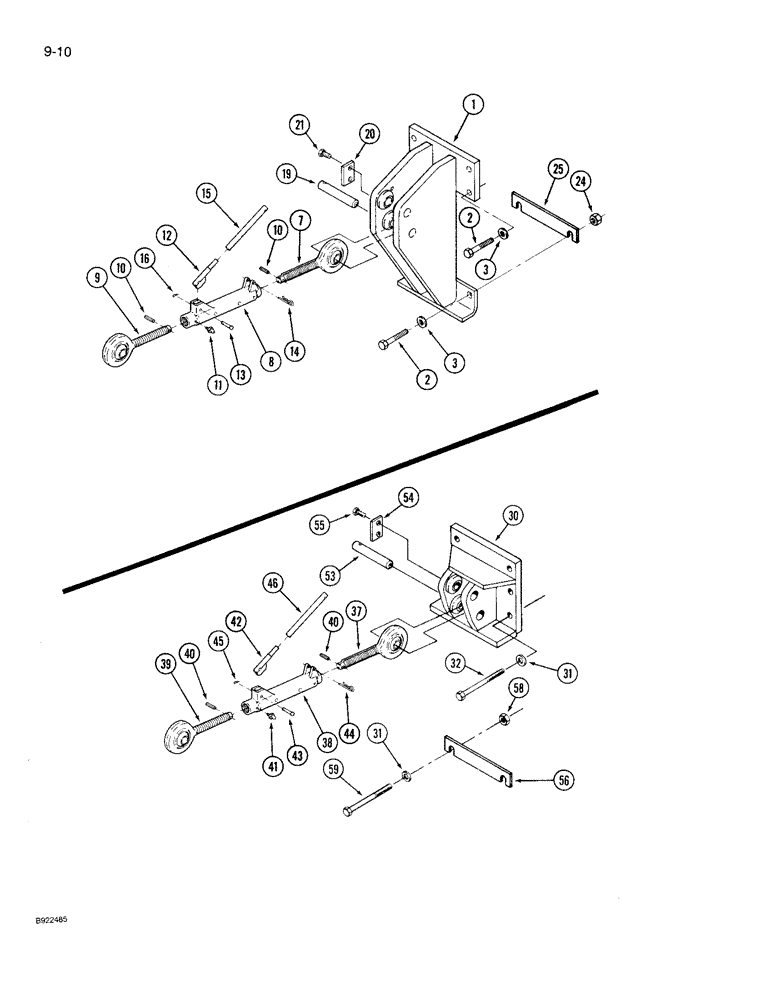

Запчасти Case IH 9230 (9-010) - HITCH UPPER LINK MOUNT, P.I.N. JCB0028400 AND AFTER, WITHOUT PTO (09) - CHASSIS/ATTACHMENTS

1

70-6358T1

FRAME

MOUNT - upper link

1шт.

2

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

6шт.

3

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

6шт.

70-6296T91

POWER ARM

LINK ASSEMBLY - upper, Includes: Ref. 7 - 16

1шт.

7

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ROD - upper link, left hand thread

1шт.

8

1954221C2

LINK

TURNBUCKLE - upper link

1шт.

9

1981986C1

END,1-1/2" - 6

ROD - upper link, right hand thread

1шт.

10

31042R1

PIN,M6 x 38, Coiled

- spring

2шт.

11

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

2шт.

12

70-6295T1

TUBE,1" OD, 9.25" Length

HANDLE - extension, latch

1шт.

13

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, 3/8" x 2"

1шт.

14

1978738C1

HAIR PIN COTTER

3/16"

1шт.

15

70-6282T1

HANDLE

- latch, upper link

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

70-4256T1

PIN

- center link, 6-3/4 inch long

1шт.

20

70-3082T2

LARGE PLATE

BLOCK - retaining, pin

1шт.

21

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

24

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

25

70-6405T1

SHIM

- mounting

1шт.

30

70-4886T1

SUPPORT

MOUNT - upper link, with PTO

1шт.

31

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, with PTO 13/16" x 1 1/2" x .134", HDN

8шт.

32

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

- hex, 3/4 NC x 6-1/2 inch, grade 8, with PTO

6шт.

1331855C1

DRAG LINK

LINK ASSEMBLY - upper (Replaces 70-6296T91), with PTO, Includes: Ref. 37 - 45

1шт.

37

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ROD - upper link, left hand thread, with PTO

1шт.

38

1954221C2

LINK

TURNBUCKLE - upper link, with PTO

1шт.

39

1981986C1

END,1-1/2" - 6

ROD - upper link, right hand thread, with PTO

1шт.

40

31042R1

PIN,M6 x 38, Coiled

- spring, with PTO

2шт.

41

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight 1/4 inch drive type, with PTO

2шт.

42

70-6295T1

TUBE,1" OD, 9.25" Length

HANDLE - extension, latch, with PTO

1шт.

43

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, , with PTO 3/8" x 2"

1шт.

44

1978738C1

HAIR PIN COTTER

3/16", with PTO

1шт.

45

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , with PTO 3/32" x 3/4"

1шт.

46

70-6282T1

HANDLE

- extension, link, with PTO

1шт.

53

70-4256T1

PIN

- center link, 6-3/4 inch long, with PTO

1шт.

54

70-3082T2

LARGE PLATE

BLOCK - retaining, pin, with PTO

1шт.

55

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, with PTO

2шт.

56

70-6405T1

SHIM

- PTO housing

1шт.

58

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, with PTO

2шт.

59

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

w/ PTO Hex, 3/4"-10 x 7", G8

2шт.
