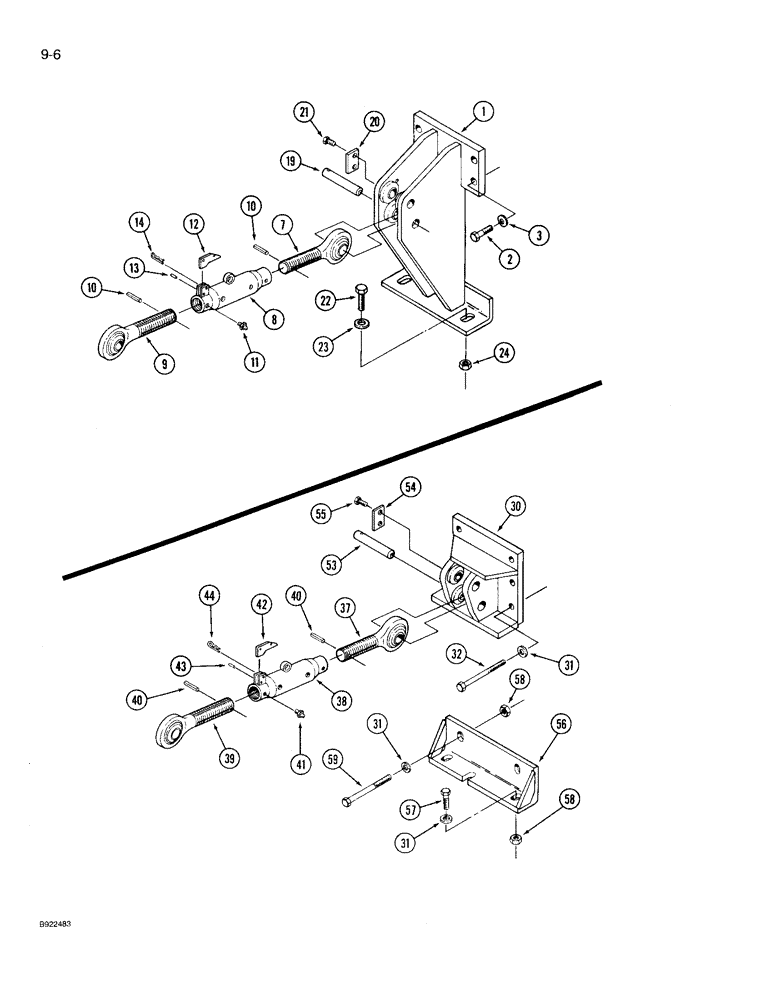

Запчасти Case IH 9230 (9-006) - HITCH UPPER LINK MOUNT, PRIOR TO P.I.N. JCB0028400, WITHOUT PTO (09) - CHASSIS/ATTACHMENTS

1

70-5674T1

MOUNTING PARTS

MOUNT - upper link

1шт.

2

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch

8шт.

3

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch

8шт.

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper, not available (Order components), Includes: Ref. 7 - 14

1шт.

7

70-4387T1

SCREW

ROD - upper link, left hand thread

1шт.

8

70-4389T2

TUBE,2.5" OD, 20" Length

TURNBUCKLE - upper link

1шт.

9

70-4388T2

SCREW

ROD - upper link, right hand thread

1шт.

10

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

2шт.

11

31-1093

FITTING

- grease, 1/4 inch NF

2шт.

12

70-4559T1

HANDLE

- latch

1шт.

13

138-2005

PIN,1/4" x 1", Coiled

2шт.

14

19-5400

PIN

- hair, 1/8 inch

1шт.

19

70-4256T1

PIN

- center link, 6-3/4 inch long

1шт.

20

70-3082T2

LARGE PLATE

BLOCK - retaining, pin

1шт.

21

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

22

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

2шт.

23

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

24

329-1012

NUT,3/4"-10, G8

2шт.

30

70-4886T1

SUPPORT

MOUNT - upper link, with PTO

1шт.

31

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, with PTO 13/16" x 1 1/2" x .134", HDN

4шт.

32

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

- hex, 3/4 NC x 6-1/2 inch, grade 8, with PTO

8шт.

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper, not available (Order components), with PTO, Includes: Ref. 37 - 44

1шт.

37

70-4387T1

SCREW

ROD - upper link, left hand thread, with PTO

1шт.

38

70-4389T2

TUBE,2.5" OD, 20" Length

TURNBUCKLE - upper link, with PTO

1шт.

39

70-4388T2

SCREW

ROD - upper link, right hand thread, with PTO

1шт.

40

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, , with PTO 1/4" x 1 1/2", Coiled

2шт.

41

31-1093

FITTING

- grease, 1/4 inch NF, with PTO

2шт.

42

70-4559T1

HANDLE

- latch, with PTO

1шт.

43

138-2005

PIN,1/4" x 1", Coiled

w/ PTO 1/4" x 1", Coiled

2шт.

44

19-5400

PIN

- hair, 1/8 inch, with PTO

1шт.

53

70-4256T1

PIN

- center link, 6-3/4 inch long, with PTO

1шт.

54

70-3082T2

LARGE PLATE

BLOCK - retaining, pin, with PTO

1шт.

55

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, with PTO

2шт.

56

70-5725T1

LARGE PLATE

PLATE - spacer, with PTO

1шт.

57

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

with PTO Hex, 3/4"-10 x 2", G8

2шт.

58

329-1012

NUT,3/4"-10, G8

with PTO 3/4"-10, G8

4шт.

59

326-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 8

w/ PTO Hex, 3/4"-10 x 7", G8

2шт.
