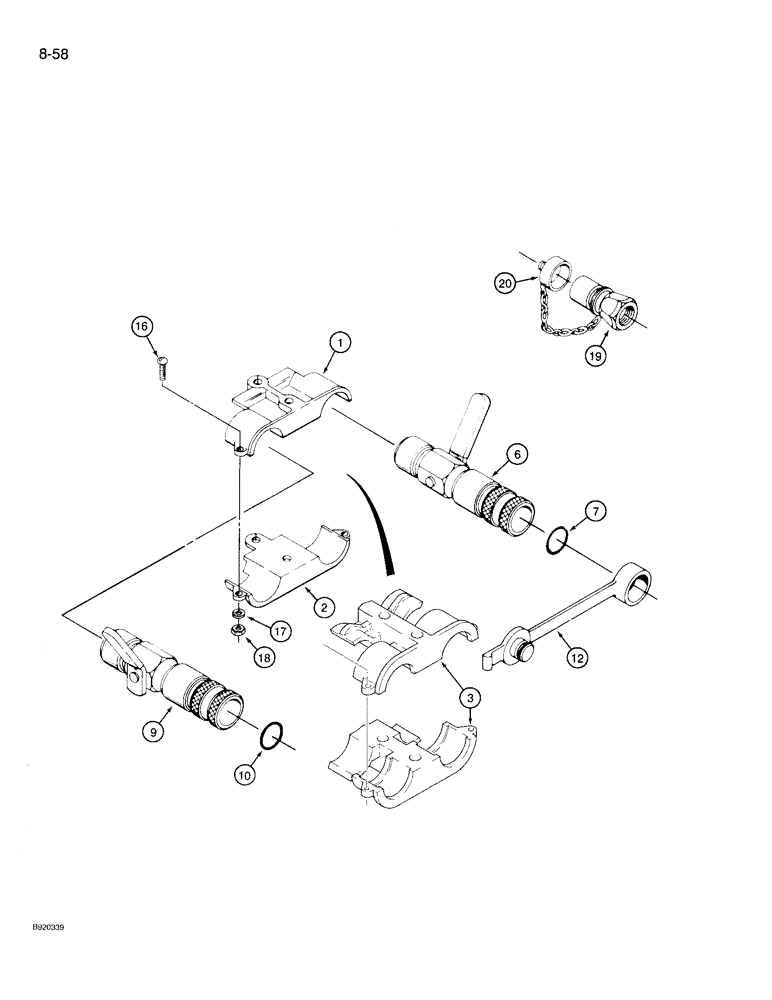

Запчасти Case IH 9230 (8-058) - QUICK DISCONNECT COUPLER ASSEMBLY (08) - HYDRAULICS

50-3349T91

COUPLING

COUPLER ASSEMBLY - quick disconnect, See Ref. 1 & 2, Includes: Ref. 1 - 18

1шт.

50-3349T92

COUPLING, BREAK AWAY

COUPLER ASSEMBLY - quick disconnect, See Ref. 3, not available as an assembly, order components, Includes: Ref. 1 - 18

1шт.

1

50-1455T1

CLAMP BRACKET

CLAMP - coupler, top, used with 50-3349T91 coupler only

1шт.

2

50-1454T1

CLAMP BRACKET

CLAMP - coupler, bottom, used with 50-3349T91 coupler only

1шт.

3

90-7634T1

MOUNTING CLIP

CLAMP - coupler, top and bottom, used with 50-3349T92 coupler only

2шт.

6

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, Includes: Ref. 7

1шт.

REF # 6, 50-1459T91 IS RIGHT HAND COUPLER ASSEMBLY AND PART WILL HAVE 'R' STAMPED BY THE HANDLE. REF # 9, 50-1460T91 IS LEFT HAND COUPLER ASSEMBLY AND PART WILL HAVE 'L' STAMPED BY THE HANDLE. JRB 02/20/97

1шт.

7

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

9

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, Includes: Ref. 10

1шт.

10

18-1107

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

O-RING - seal, coupler

1шт.

12

50-2267T1

PLUG

CAP - dust, cartridge

2шт.

16

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- pan head, No. 10 NC x 3/4 inch

2шт.

17

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

19

1-7141

FITTING

CARTRIDGE - coupler, remote

2шт.

20

1-7142

CAP

- coupler dust, rubber

2шт.
