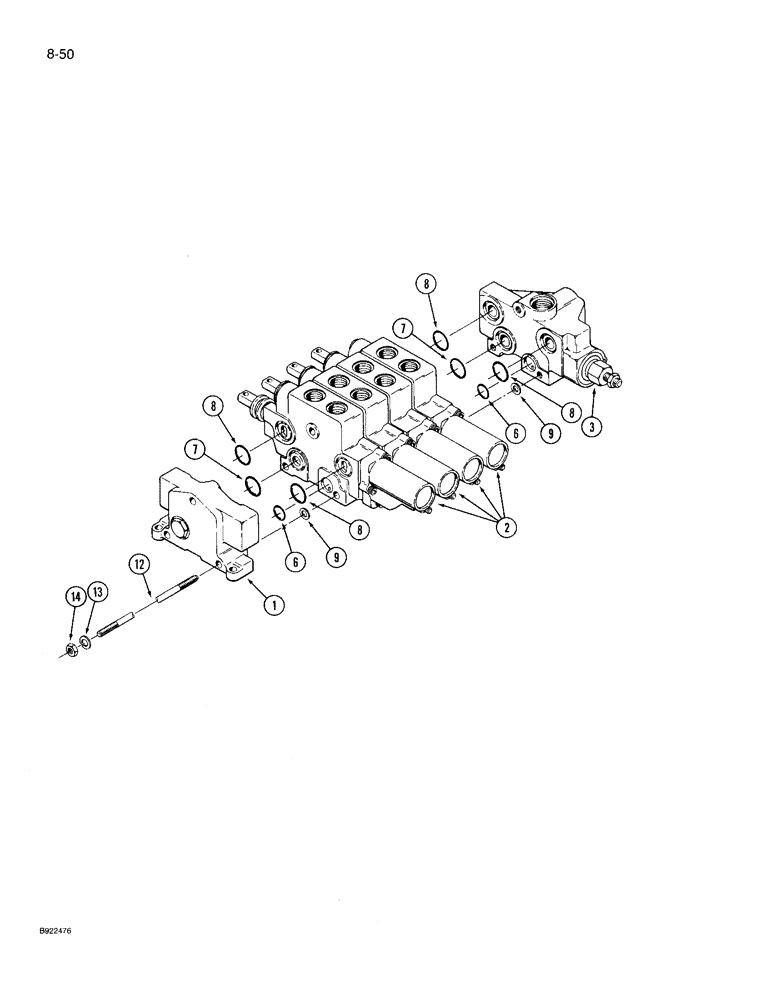

Запчасти Case IH 9230 (8-050) - HYDRAULIC REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

50-2948T92

VALVE, CONTROL

VALVE ASSEMBLY - remote, two spool, Includes: Ref. 1 - 14

1шт.

50-2949T92

VALVE, CONTROL

VALVE ASSEMBLY - remote, three spool, Includes: Ref. 1 - 14

1шт.

50-2950T92

VALVE

ASSEMBLY - remote, four spool, Includes: Ref. 1 - 14

1шт.

1

A52403

BODY

COVER - end

1шт.

2

50-2302T91

ASSEMBLY

SECTION ASSEMBLY - valve, float, See Figures 8-052 and 8-054

1шт.

3

50-2960T92

VALVE

SECTION ASSEMBLY - inlet, with priority valve, See Figure 8-056

1шт.

2-3792T1

SEAL KIT

- seal, valve section, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING -seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

12

50-2658T1

STUD

- valve, three spool remote, if used

3шт.

12

50-2659T1

STUD

- valve, four spool remote, if used

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

35-1831T91

KIT - valve, third spool, Order from Machinery Price List. Includes: parts needed to add the additional remote hydraulic spool

1шт.

35-1832T91

KIT - valve, fourth spool, Order from Machinery Price List. Includes: parts needed to add the additional remote hydraulic spool

1шт.
