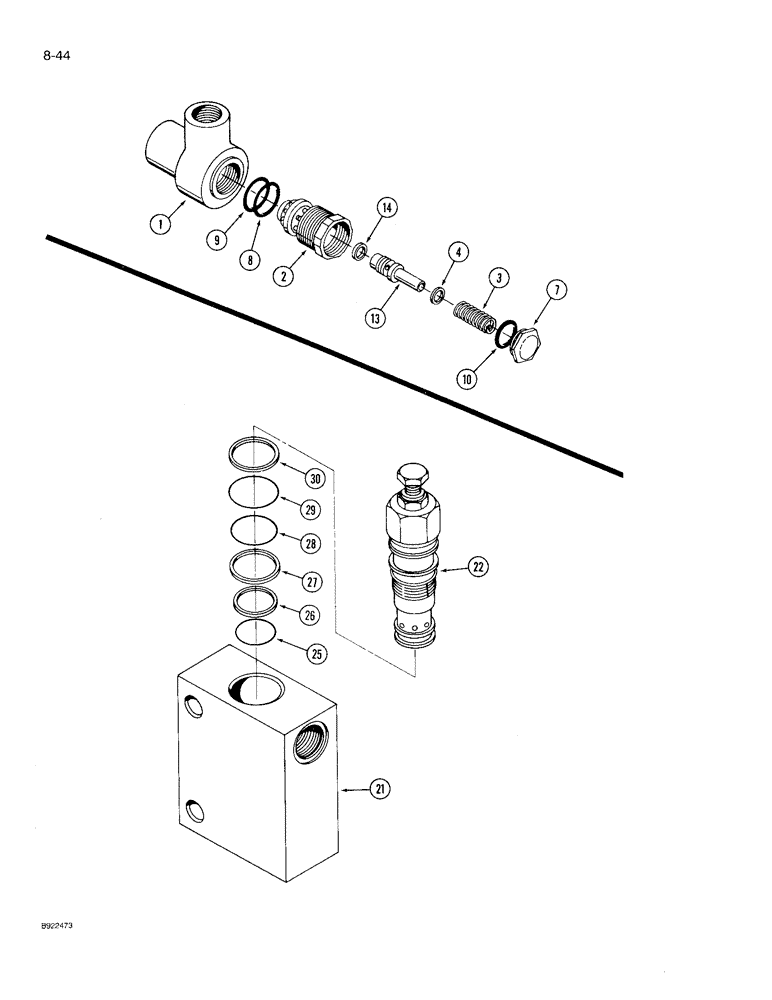

Запчасти Case IH 9230 (8-044) - HYDRAULIC RELIEF VALVE (08) - HYDRAULICS

50-2291T91

VALVE

ASSEMBLY - relief, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

18-1703

VALVE, PRESSURE RELI

BODY - relief

1шт.

3

1-4458

SPRING

- poppet relief

1шт.

4

D39712

SHIM

- spring, 0.010 inch thick

1шт.

7

18-923

PLUG

CAP - relief valve

1шт.

18-1418

SEAL KIT

KIT - seal, valve, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

18-1417

SEAL

- relief, poppet, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - relief

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

1шт.

50-3293T91

VALVE

ASSEMBLY - pressure reducing, hydraulic, Includes: Ref. 21 - 30

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve, hydraulic pressure reducing

1шт.

22

50-2715T91

CARTRIDGE

- pressure reducing, Includes: Ref. 25 - 30, hydraulic valve

1шт.

50-2717T1

SEAL KIT

KIT - seal, cartridge, hydraulic pressure reducing valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - seal, hydraulic pressure reducing valve

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup, hydraulic pressure reducing valve

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - backup, hydraulic pressure reducing valve

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, hydraulic pressure reducing valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, hydraulic pressure reducing valve

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - backup, hydraulic pressure reducing valve

1шт.
