Запчасти Case IH 9230 (8-042) - HITCH CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

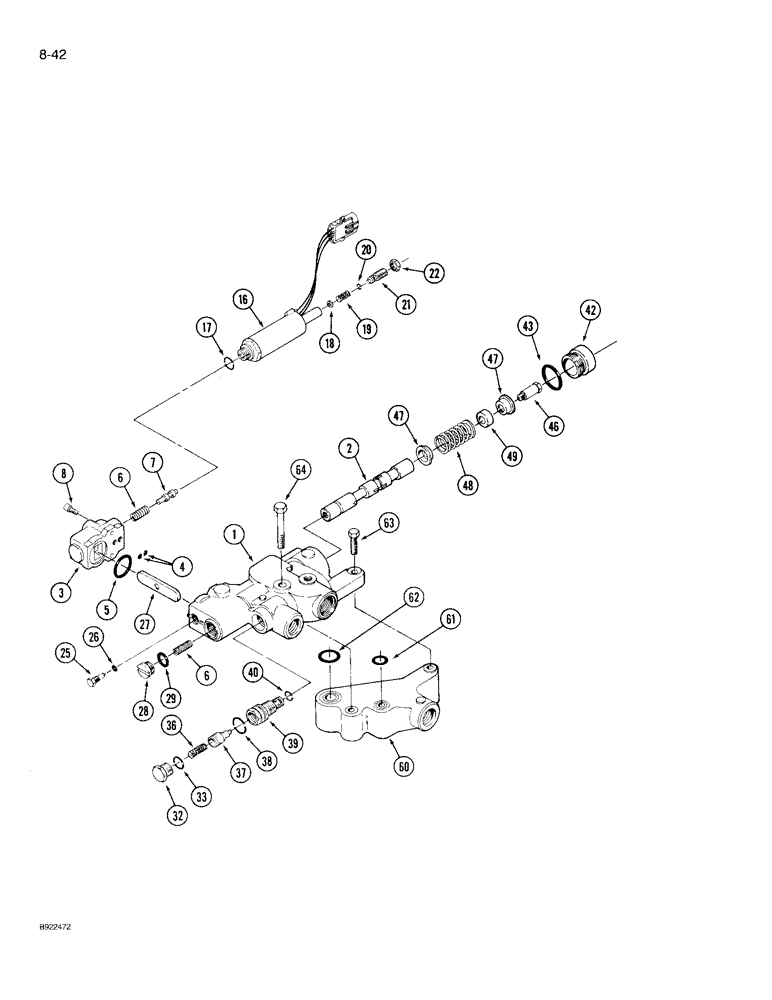

Схема запчастей Case IH 9230 - (8-042) - HITCH CONTROL VALVE ASSEMBLY (08) - HYDRAULICS
6
27
40
33
61
2
28
49
64
37
22
47
4
1
26
60
20
6
8
63
42
5
32
21
3
444
46
47
36
43
39
48
38
16
25
17
62
18
29
7
19

Артикул

Название

Примечание

Количество

50-3321T91

VALVE

ASSEMBLY - three point hitch control, Includes: Ref. 1 - 64

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - hitch (Order 50-3321T91), Includes: Ref. 1 - 64

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 50-3321T91)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 50-3321T91)

1шт.

3

1986877C1

PACKAGE

BODY ASSEMBLY - servo, solenoid, Includes: Ref. 4 & 5

1шт.

4

238-5009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

-009, 70 Duro, .208" ID x .070" Thk

2шт.

Must be ordered individually.

1шт.

5

1971617C1

O-RING

- 1-3/16 ID x 1/16 inch

1шт.

Must be ordered individually.

1шт.

6

1971620C1

SPRING

- pivot lever

2шт.

7

1971601C1

SPOOL

- control

1шт.

8

1971618C1

SCREW

- machine

2шт.

1346208C1

SOLENOID

ASSEMBLY - electrical, Includes: Ref. 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

CORE - solenoid

1шт.

17

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

Must be ordered individually.

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - flat

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - solenoid

1шт.

20

A47983

O-RING,2.38mm Thk x 18.82mm ID

- 1/4 ID x 1/8 inch

1шт.

Must be ordered individually.

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG - adjustment

1шт.

22

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

25

1971603C1

PLUG

ASSEMBLY - pivot, Includes: Ref. 26

1шт.

26

1971604C1

O-RING

- 15/64 ID x 1/16 inch

1шт.

Must be ordered individually.

1шт.

27

1971609C1

LEVER

- pivot

1шт.

28

1971614C1

PLUG

ASSEMBLY - slotted, Includes: Ref. 29

1шт.

29

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

Must be ordered individually.

1шт.

1346209C1

PACKAGE

KIT - lockout. valve, Includes: Ref. 32 - 40

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG ASSEMBLY - hex, Includes: Ref. 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Must be ordered individually.

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - lockout poppet

1шт.

37

NSS

NOT SOLD SEPARAT

POPPET - lockout

1шт.

38

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Lockout housing -118, 90 Duro, .862" ID x .103" Thk

1шт.

Must be ordered individually.

1шт.

39

NSS

NOT SOLD SEPARAT

HOUSING - lockout

1шт.

40

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Lockout housing -113, 90 Duro, .549" ID x .103" Thk

1шт.

Must be ordered individually.

1шт.

42

1971616C1

END ASSY.

CAP ASSEMBLY - end, Includes: Ref. 43 - 49

1шт.

43

238-5125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

- 1-5/16 ID x 3/32 inch

1шт.

Must be ordered individually.

1шт.

46

1971615C2

SCREW

- spool

1шт.

47

1971599C1

WASHER

- special, deep

2шт.

48

1971621C1

SPRING

- valve spool

1шт.

49

1971619C1

SPACER

- valve spool

1шт.

60

50-3153T1

VALVE BLOCK

BLOCK - port

1шт.

61

90-6019T1

O-RING,0.424" ID x 0.103" Width

- 27/64 x 7/64 inch

1шт.

62

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

63

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

1шт.

64

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, grade 8

1шт.

1971624C2

SEAL KIT

KIT - seal, valve, not available, Ref. 4, 5, 17, 20, 26, 29, 33, 38, 40 & 43 must be ordered individually

1шт.
